Gallery
A small selection of my work that I can currently show and that isnt under either NDA, design or development.
A long term personal project for a manufacturing short run. Complete design from idea - Final Cad design.

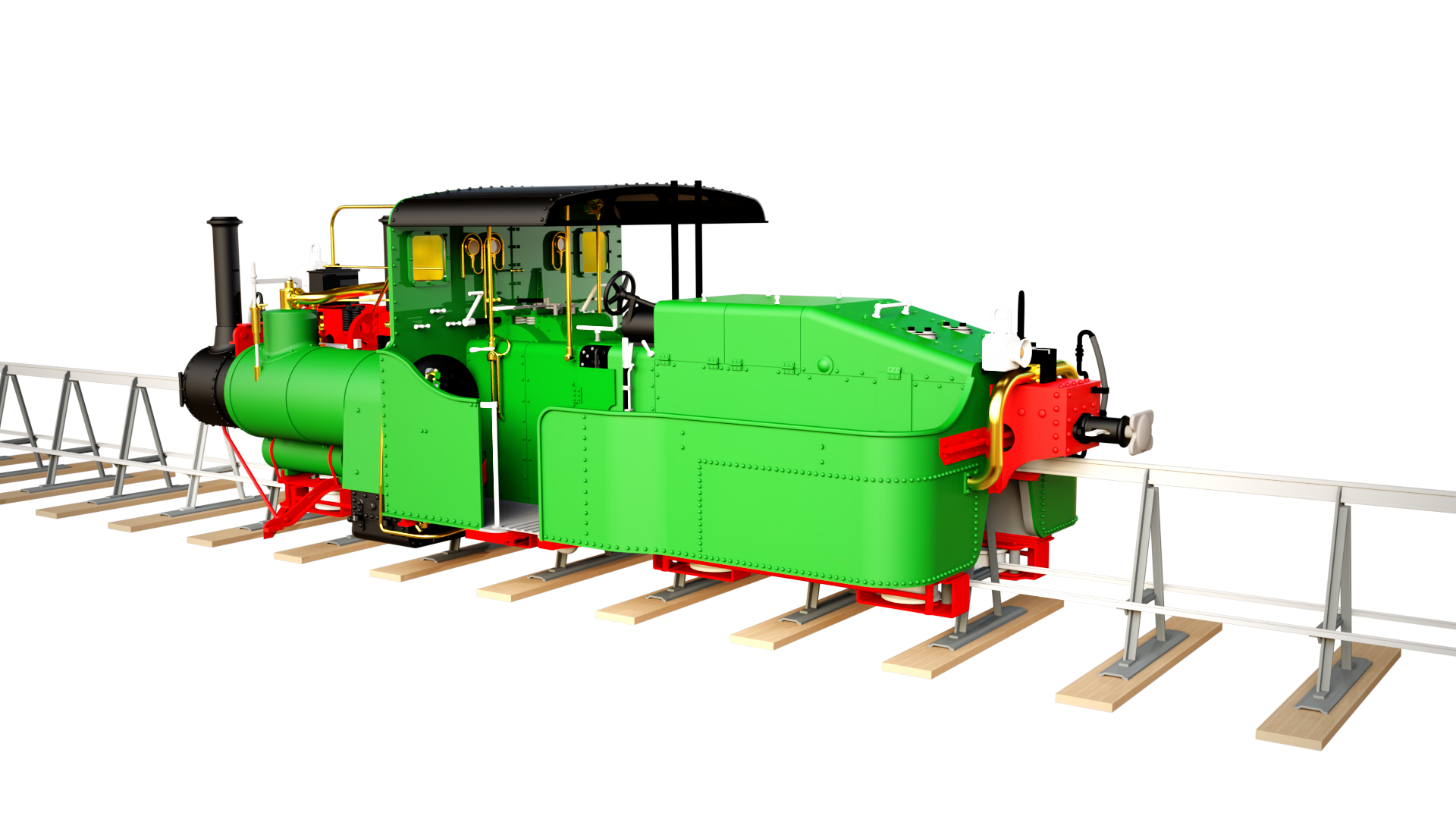

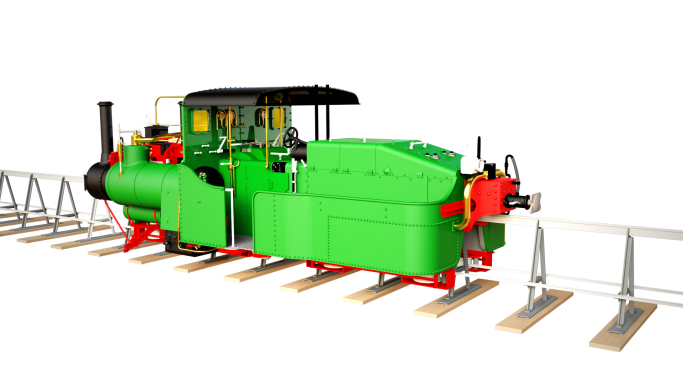

Listowell Monorail - 1:43.5

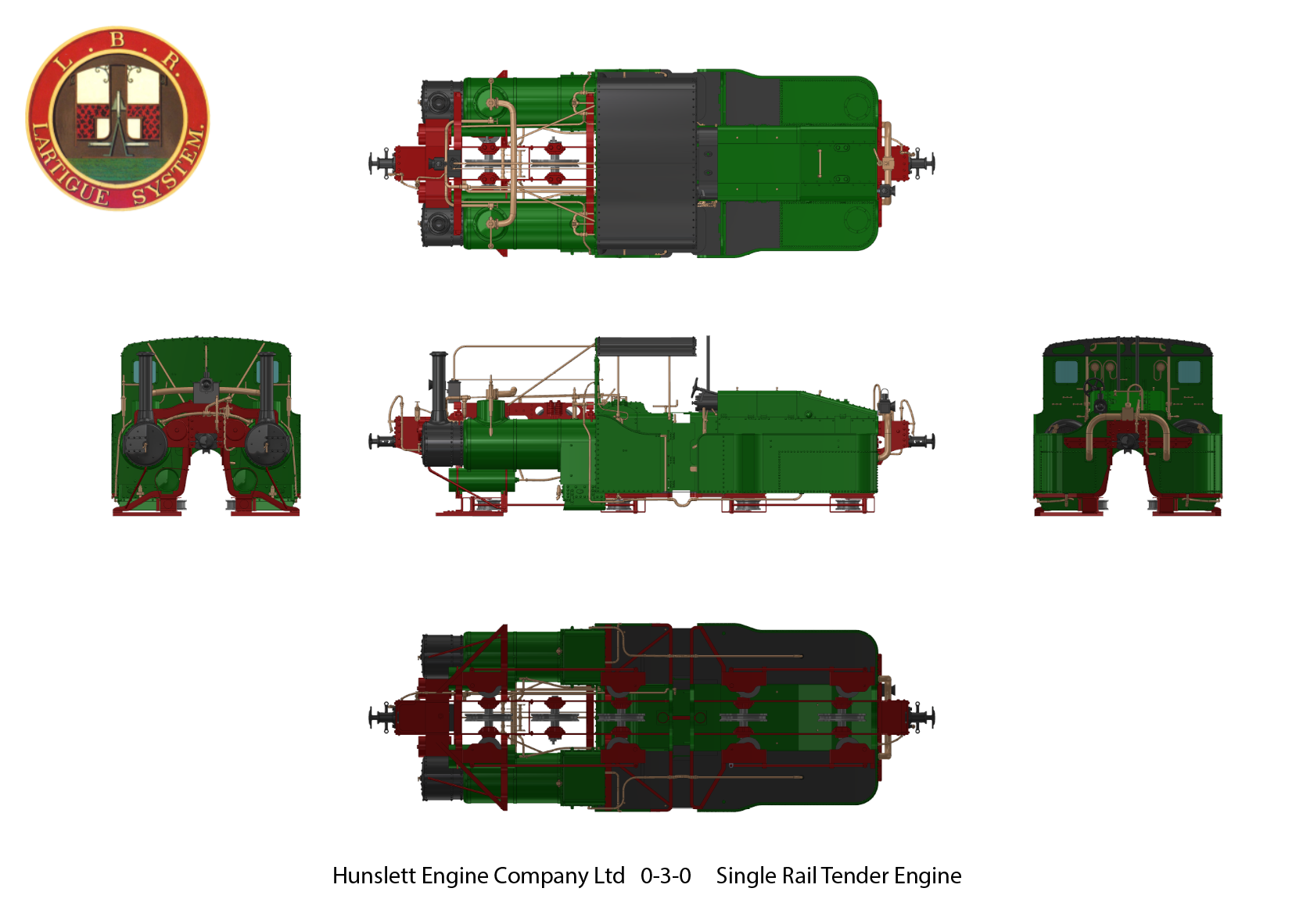

A long term personal monorail project for a manufacturing short run. Complete design from idea - final cad design.
Listowell Monorail - 1:43.5
A long term personal monorail project for a manufacturing short run. Complete design from idea - 2D artwork outline.
Listowell Monorail - 1:43.5
This award winning ready to run model was designed and developed for Ellis Clark Trains. Constructed mostly from Die-cast metal and brass.

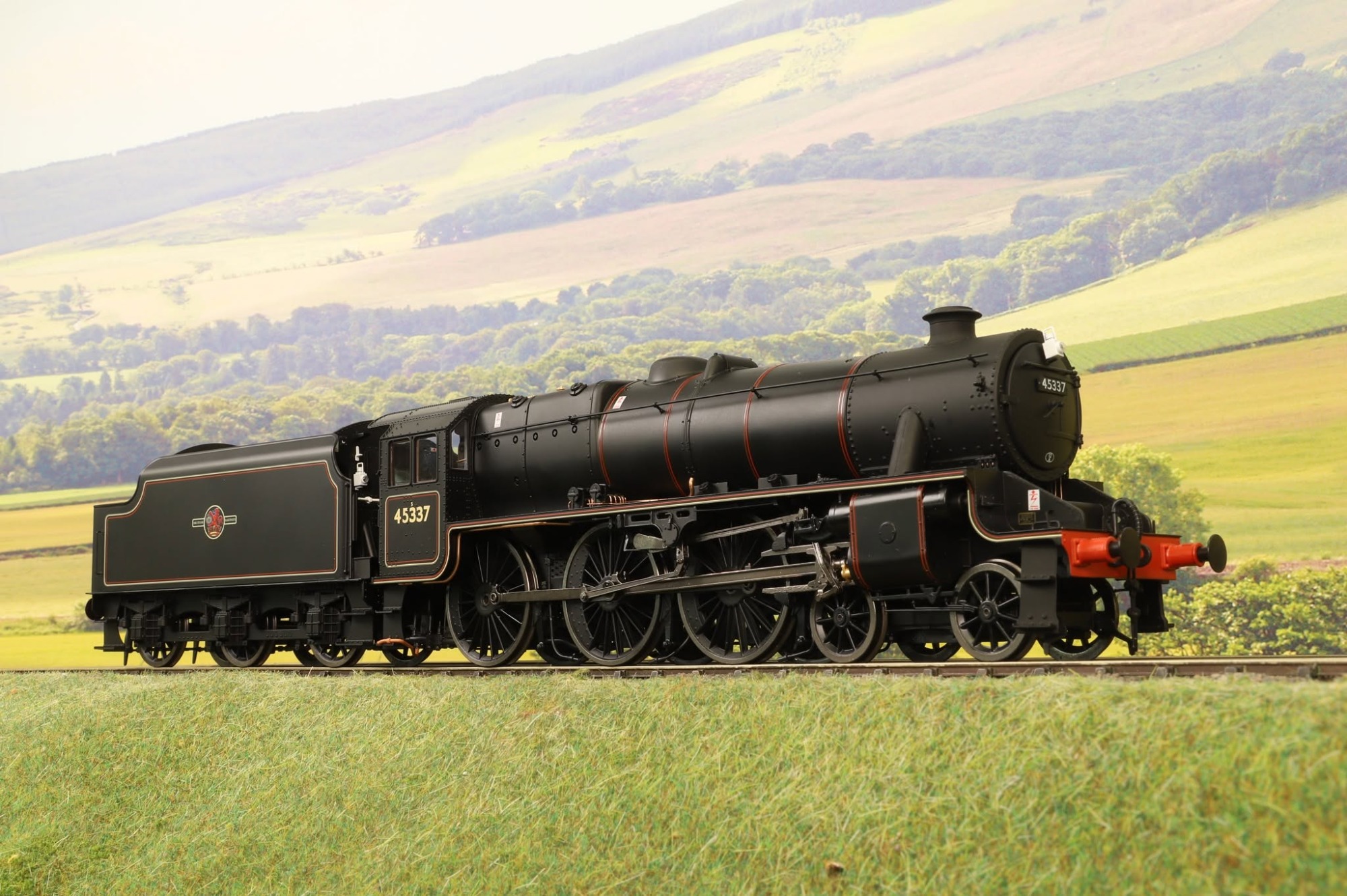

Stanier Black 5 - 1:43.5

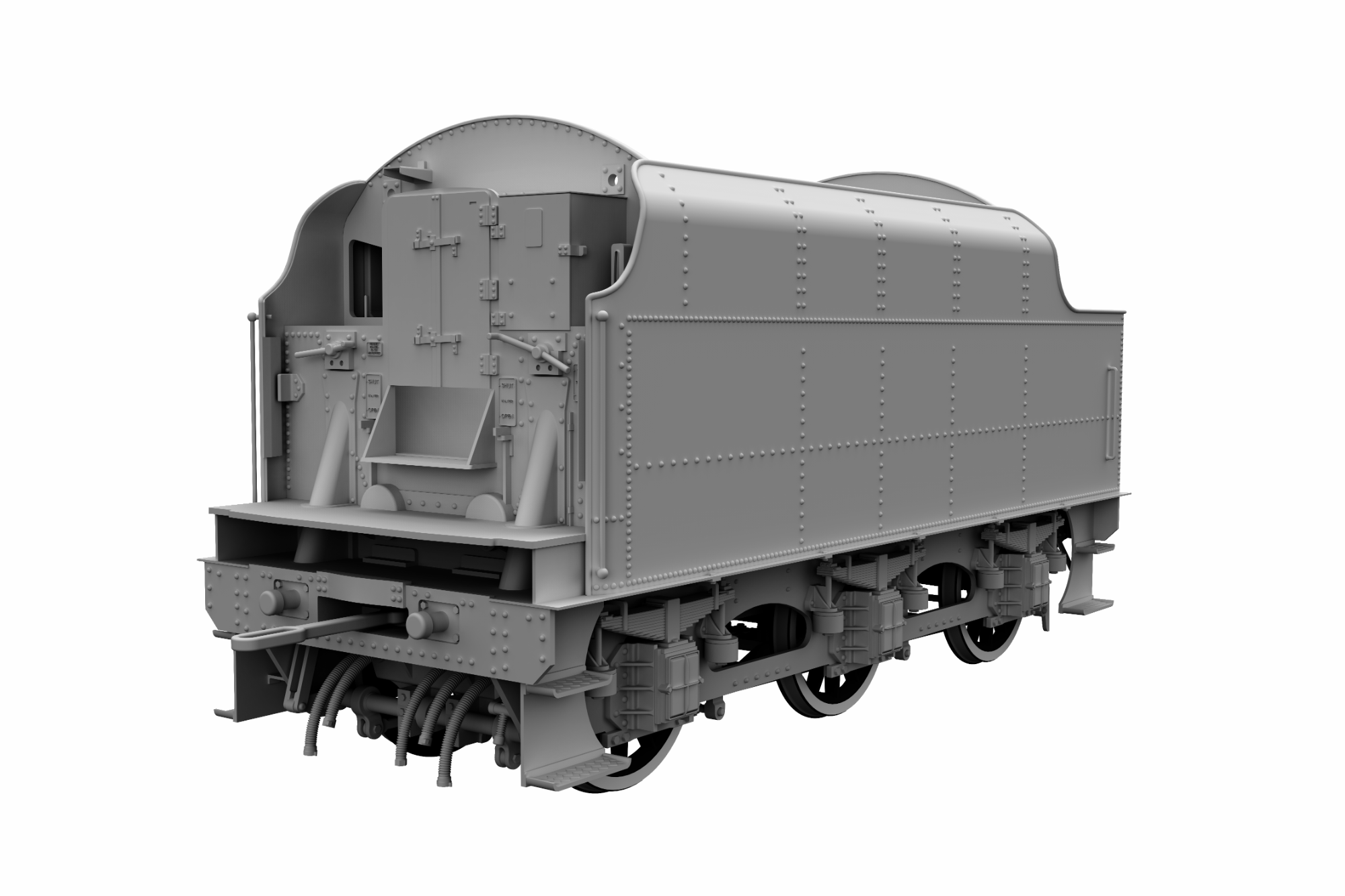

This tender is from the Black 5 designed for Ellis Clark Trains. Hybrid design with brass sides.
Stanier Black 5 Tender- 1:43.5

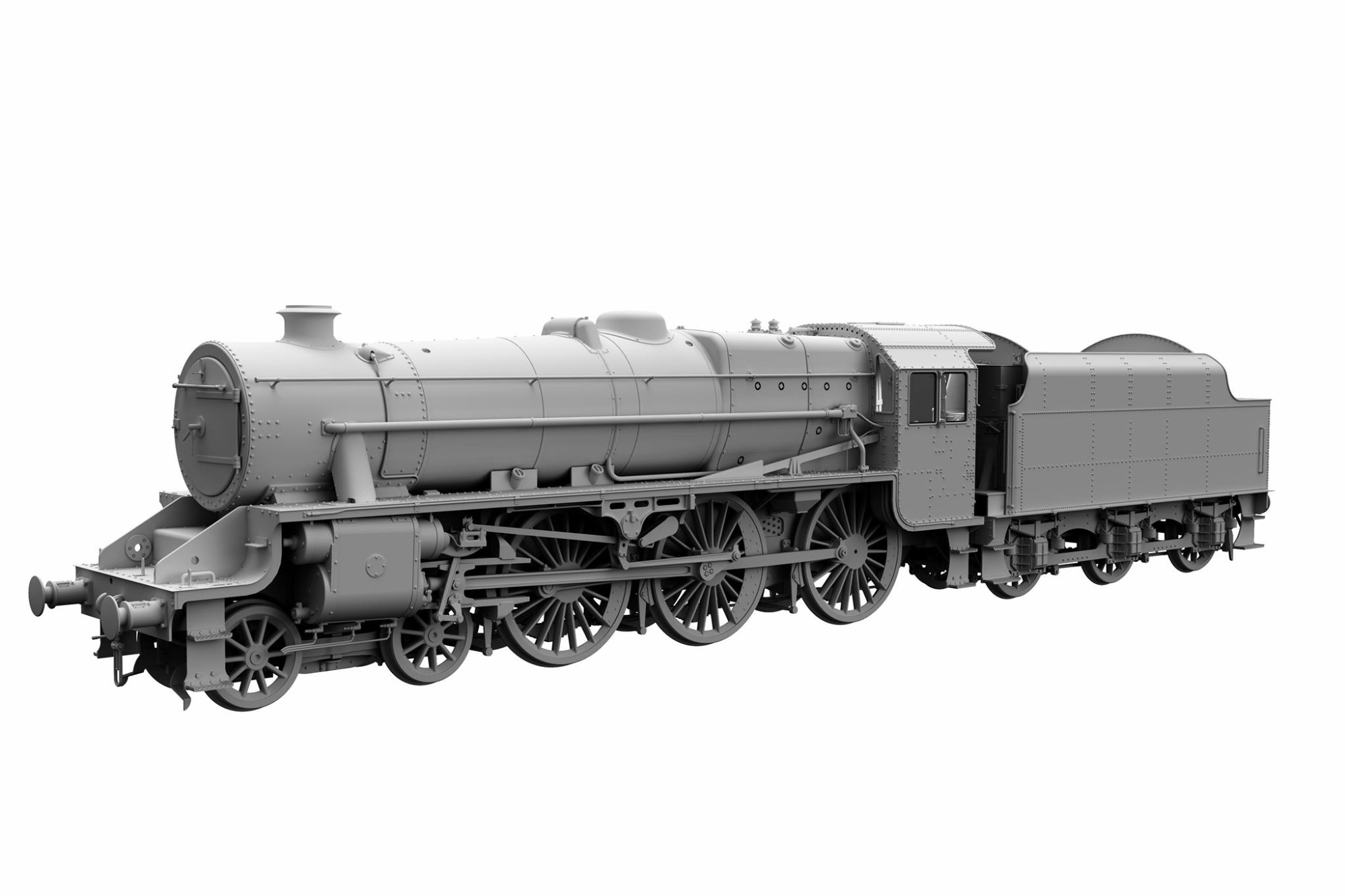

This award winning ready to run model was designed and developed for Ellis Clark Trains. Constructed mostly from Die-cast metal and brass.
Stanier Black 5 - 1:43.5

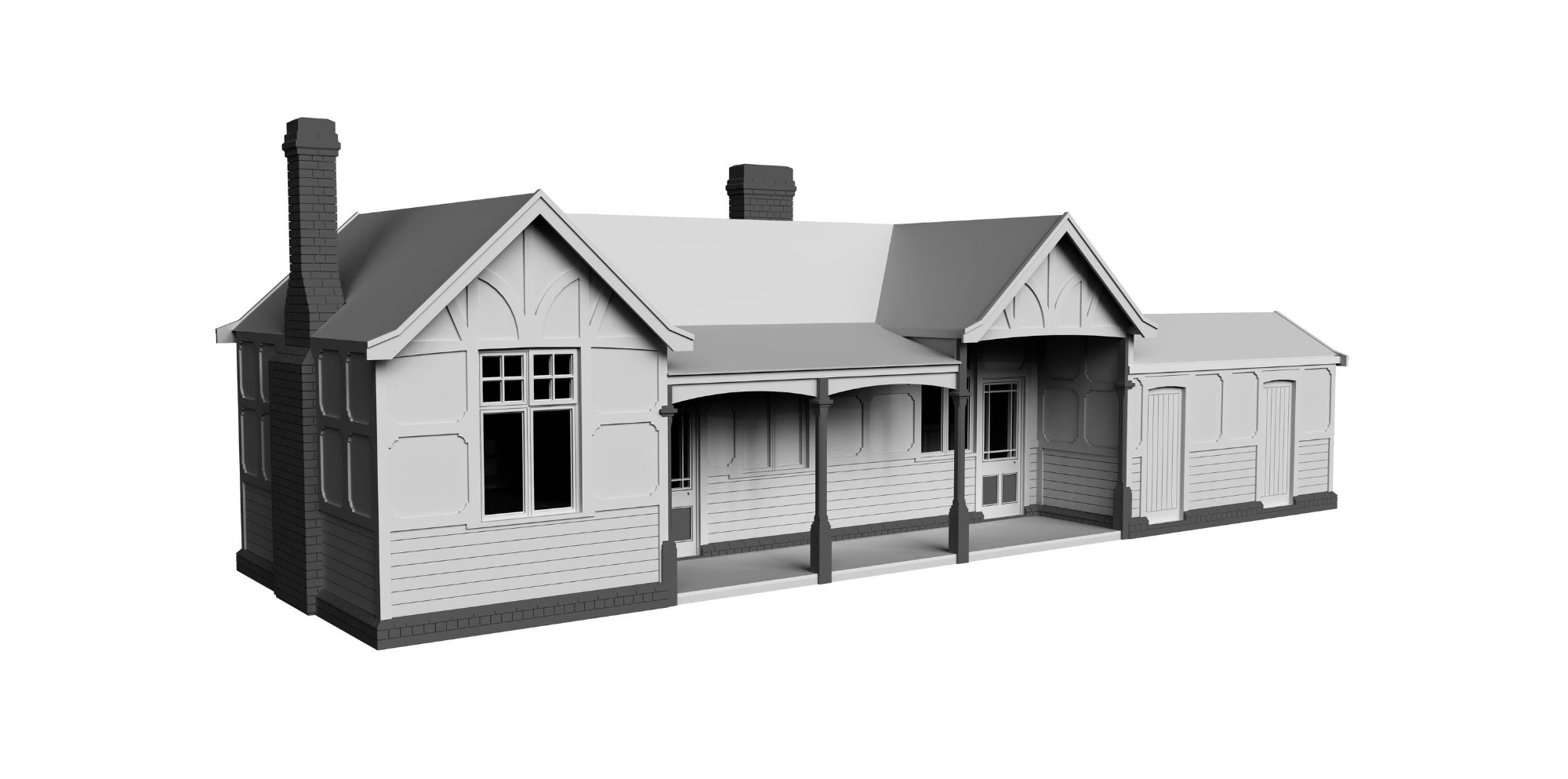

Derwent Valley Light Railway Station Kit design for multi media construction.
DVLR Station Kit - 1:43.5

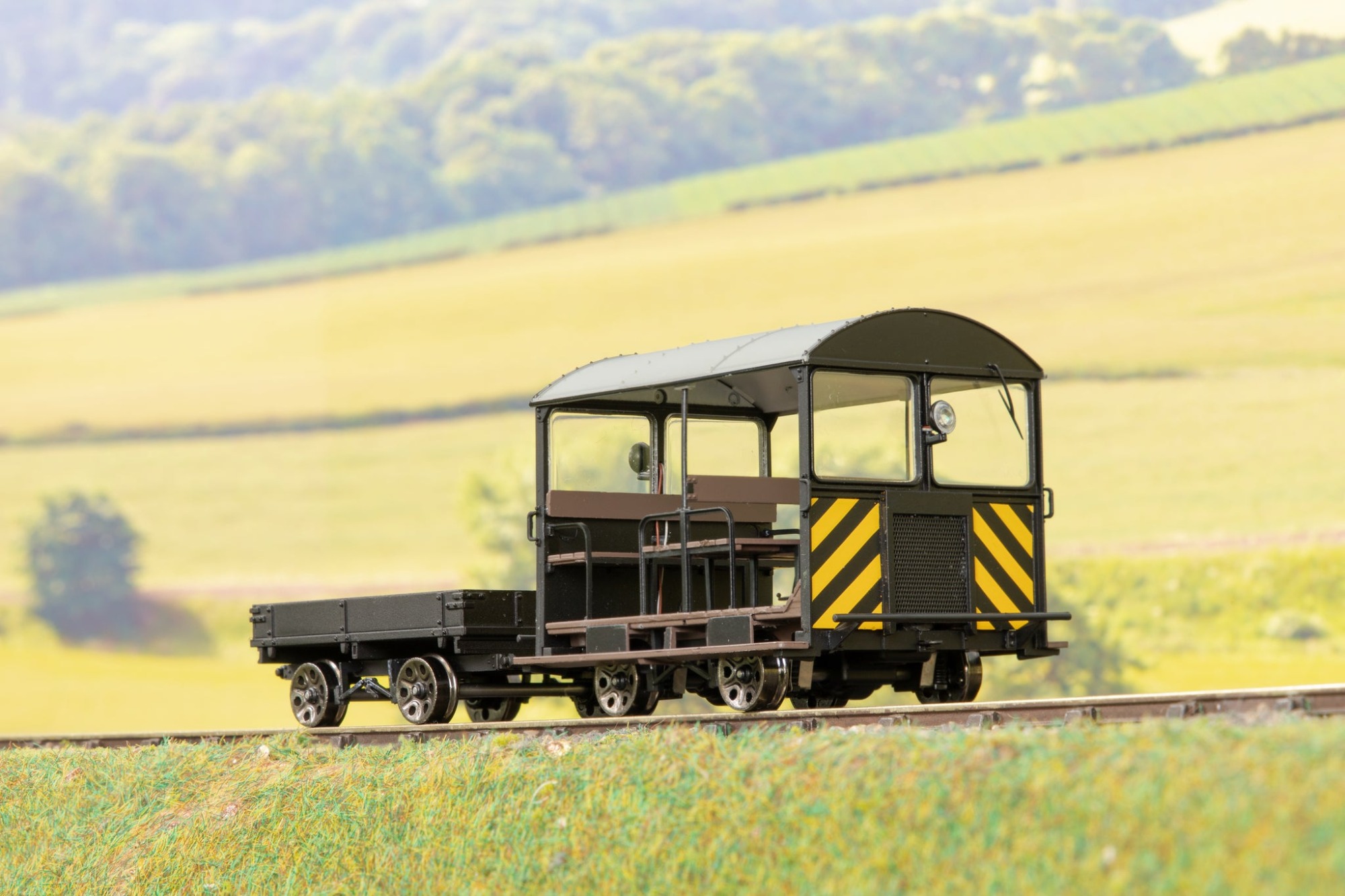

This diminutive O gauge model was designed for Ellis Clark Trains. This complete project had to have full DCC sound hidden on board as well.
Wickham Type 27 Trolley - 1:43.5
This diminutive O gauge model was designed for Ellis Clark Trains. This complete project had to have full DCC sound hidden on board as well.
Wickham Type 27 Trolley - 1:43.5

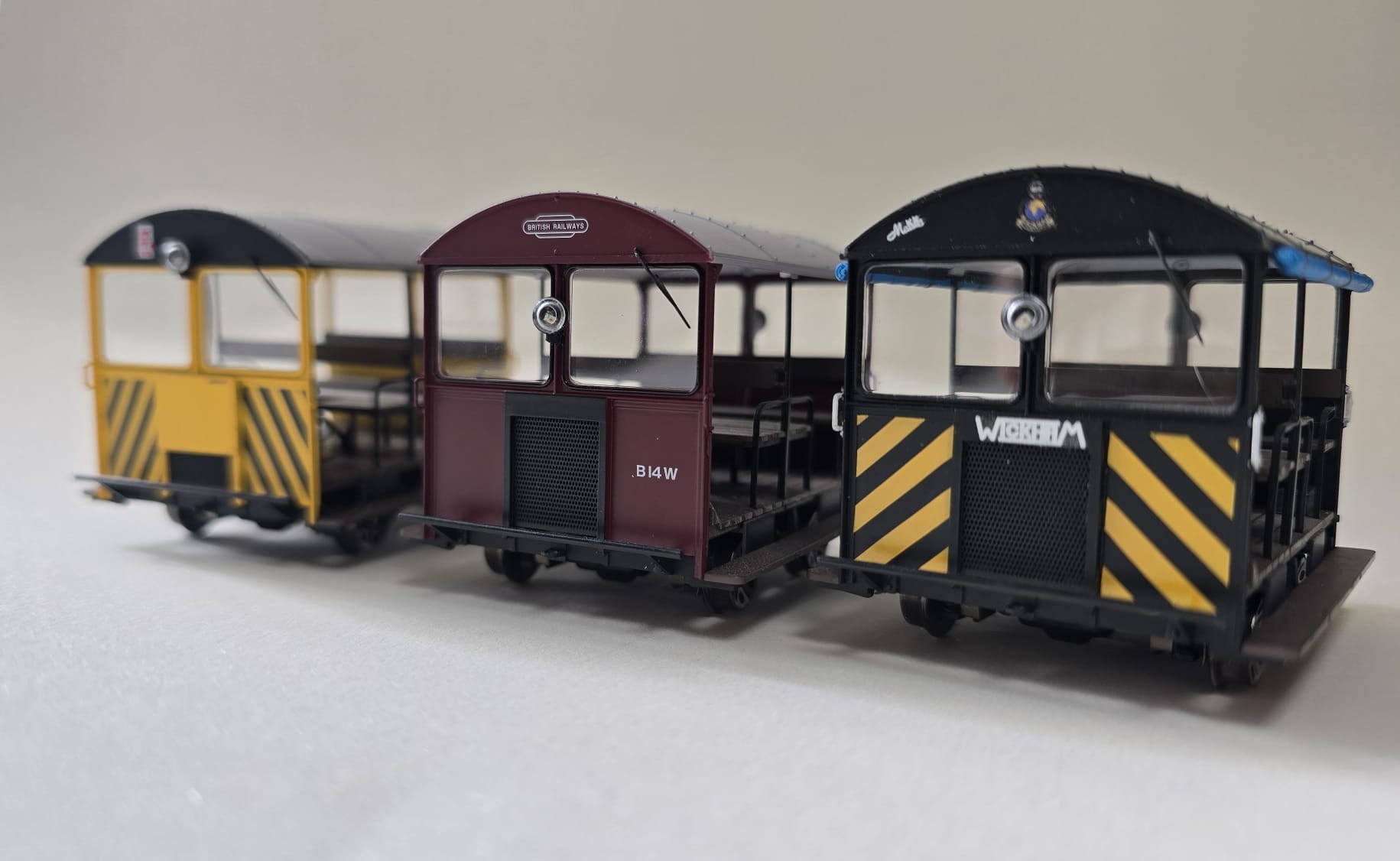

The Wickham trolley model and the Shed kit were both complete projects for Ellis Clark Trains, from research to manufacturing ready.

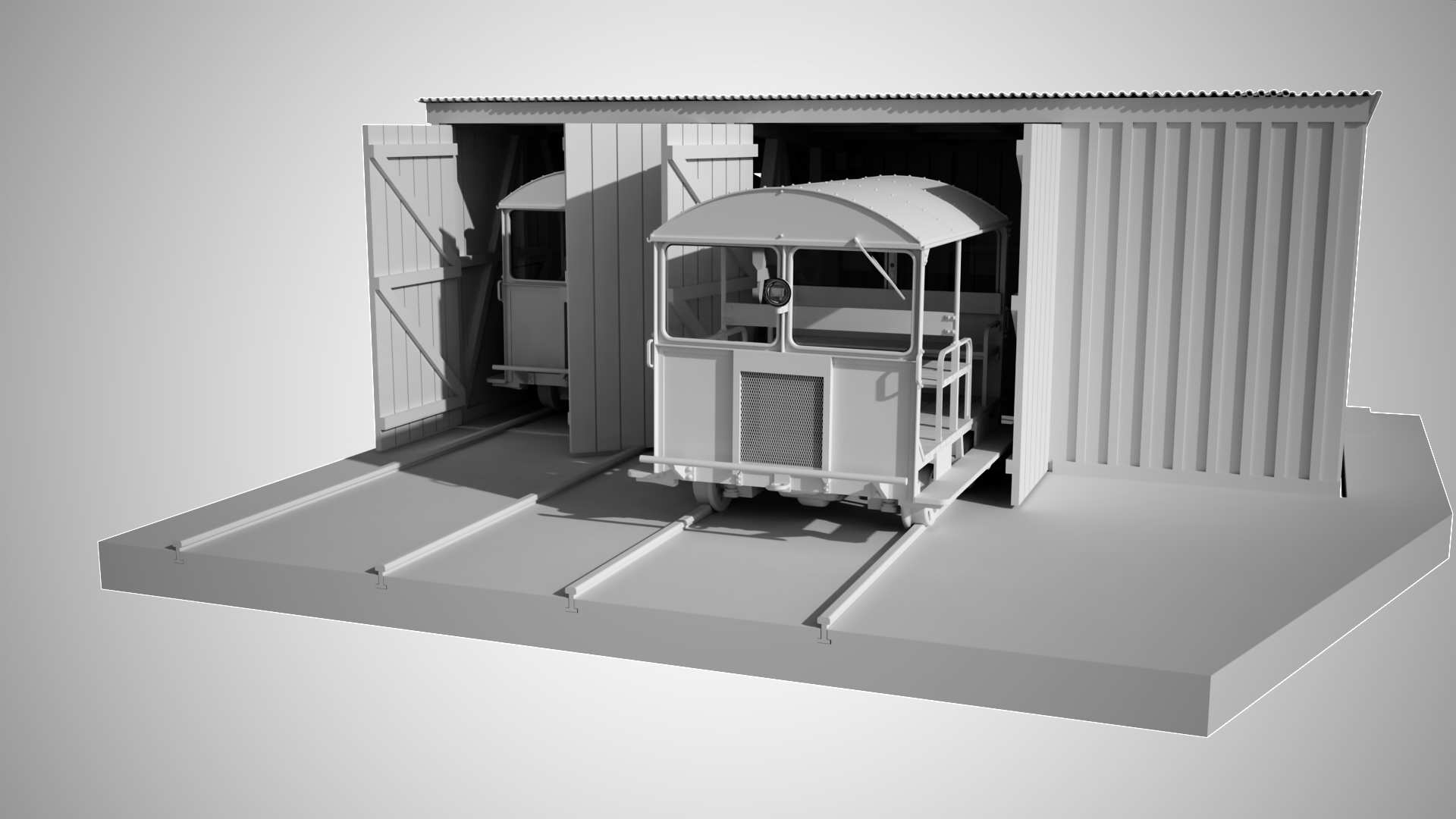

Wickham Shed & Wickham Trolley - 1:43.5

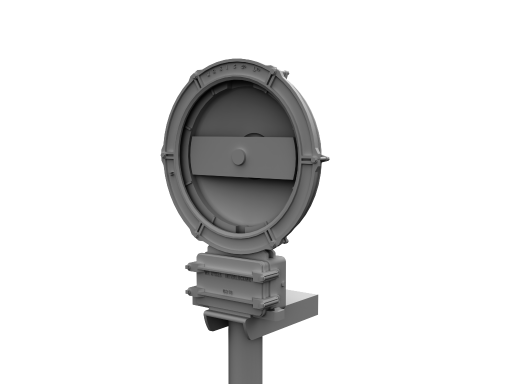

Internally lit Banner repeater head signal CAD design for Bolton's Bits.

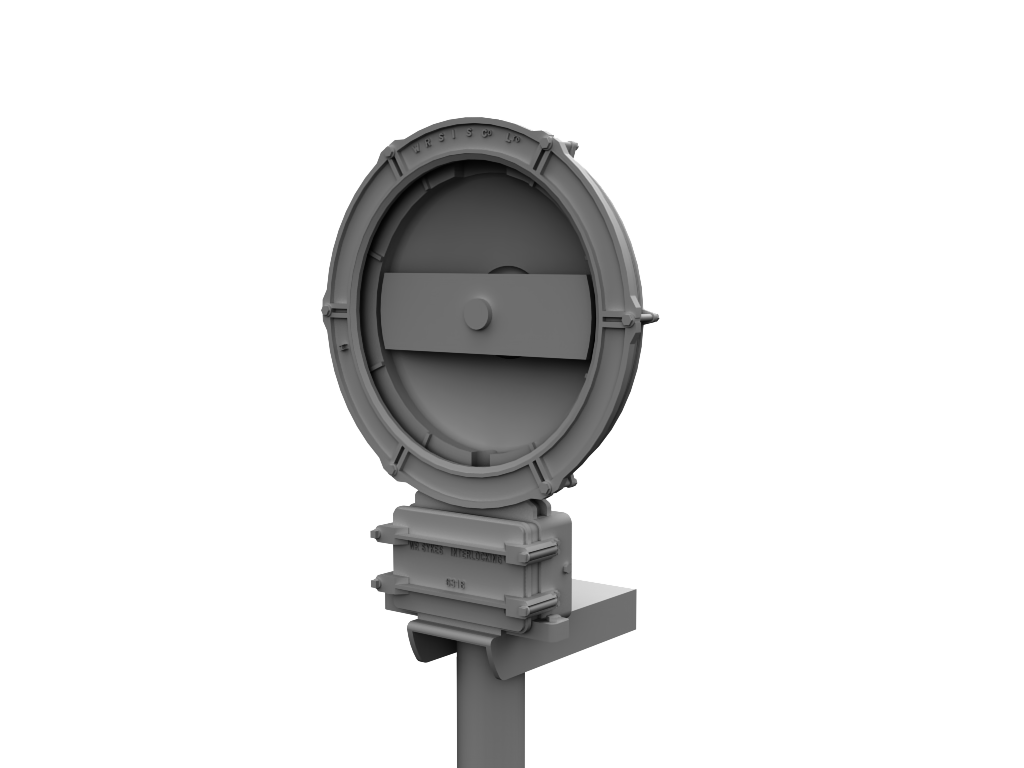

Banner Repeater Signal - 1:43.5

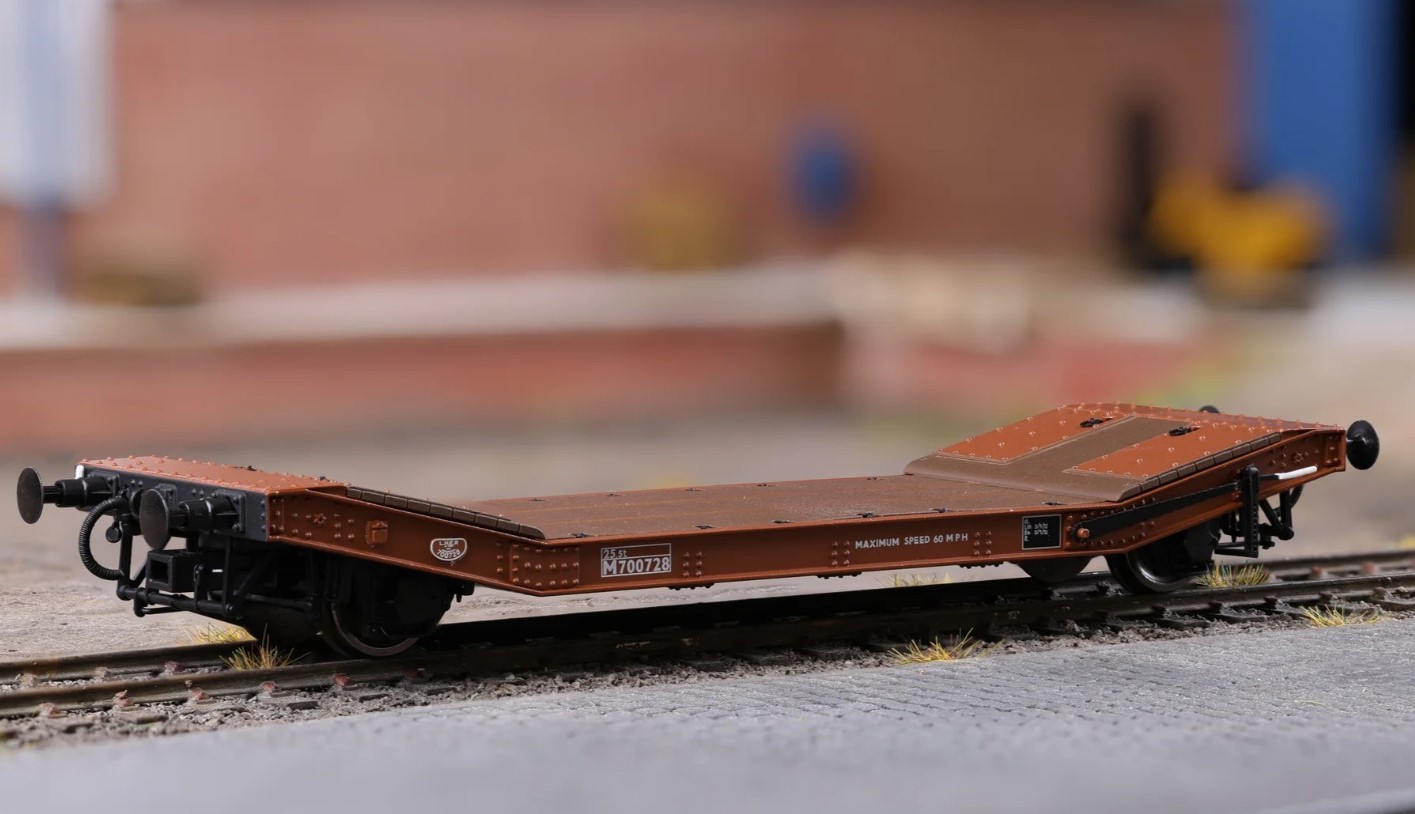

This model was designed for Clark Railworks and featured new development in the form on the Ultra flex pipework.
Lowmac Wagon - 1:76.2
Cad to make the originals for a master mould for Armorpax.

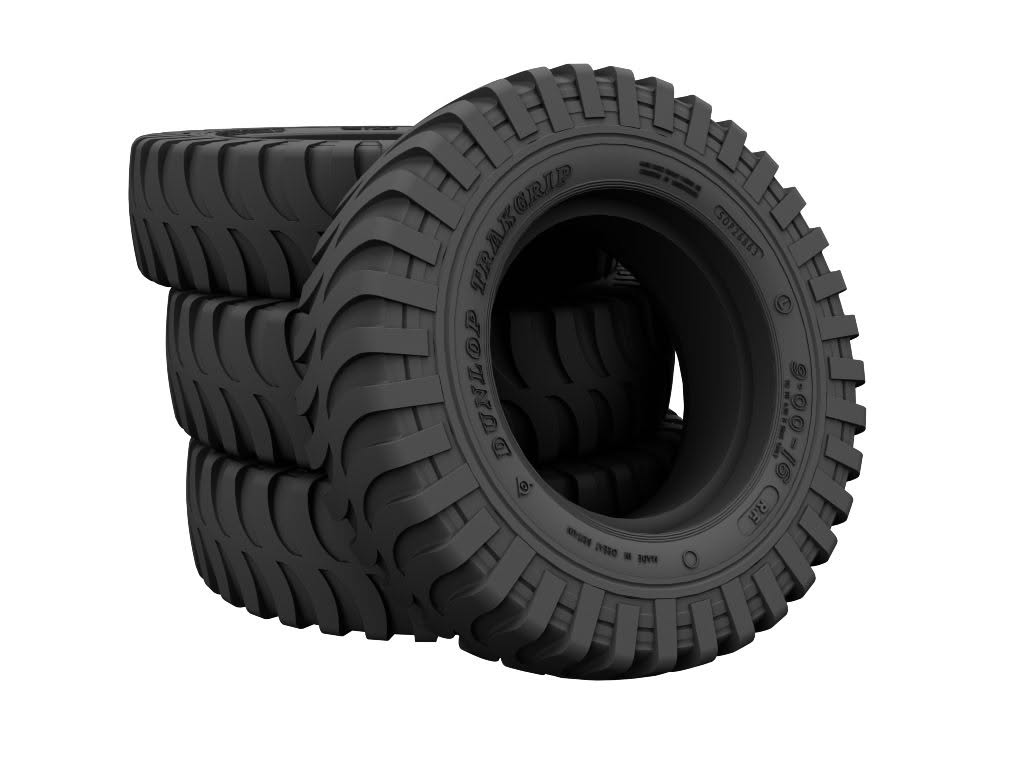

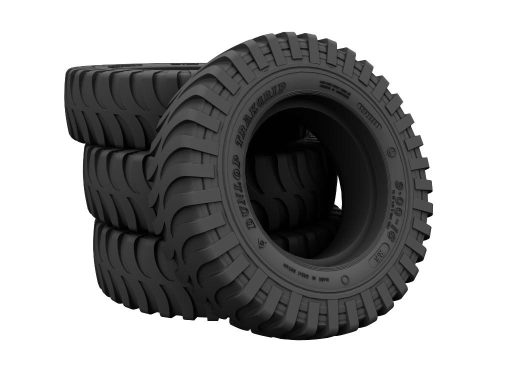

Large scale tires 1:6 Scale

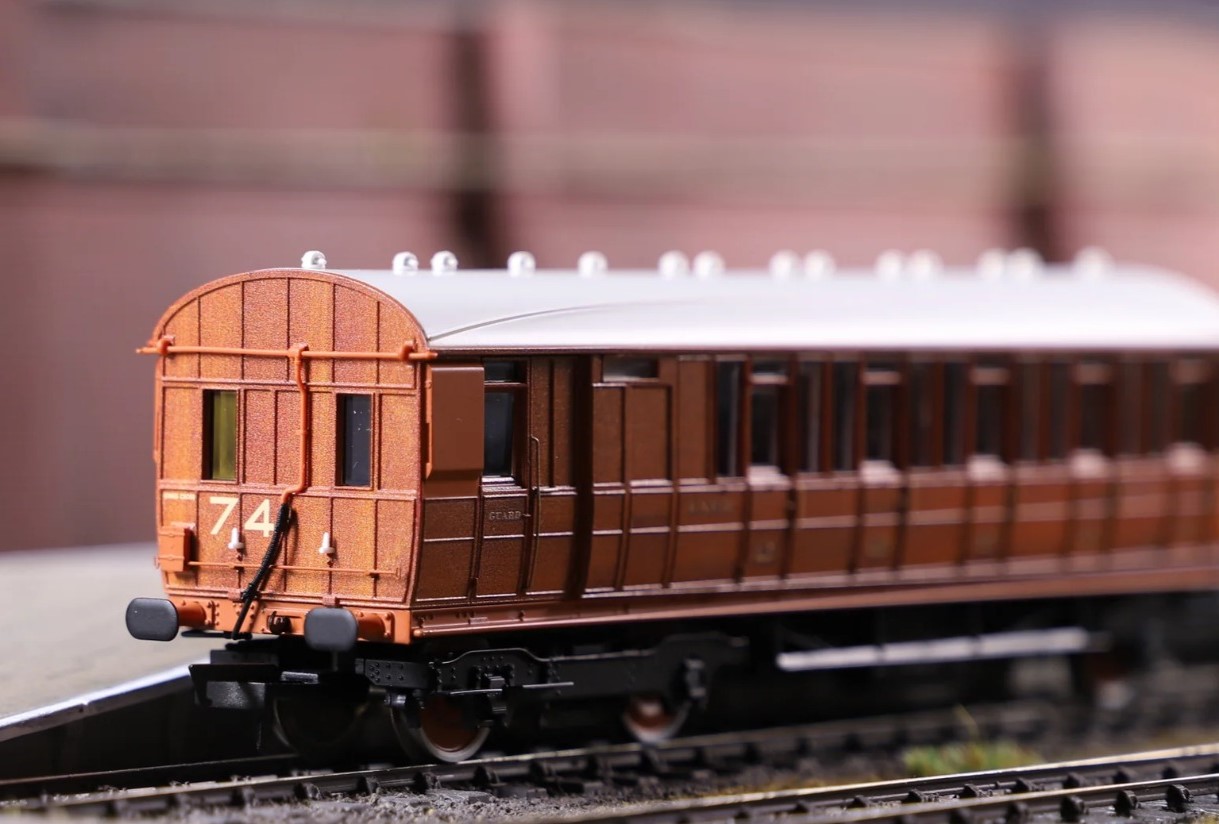

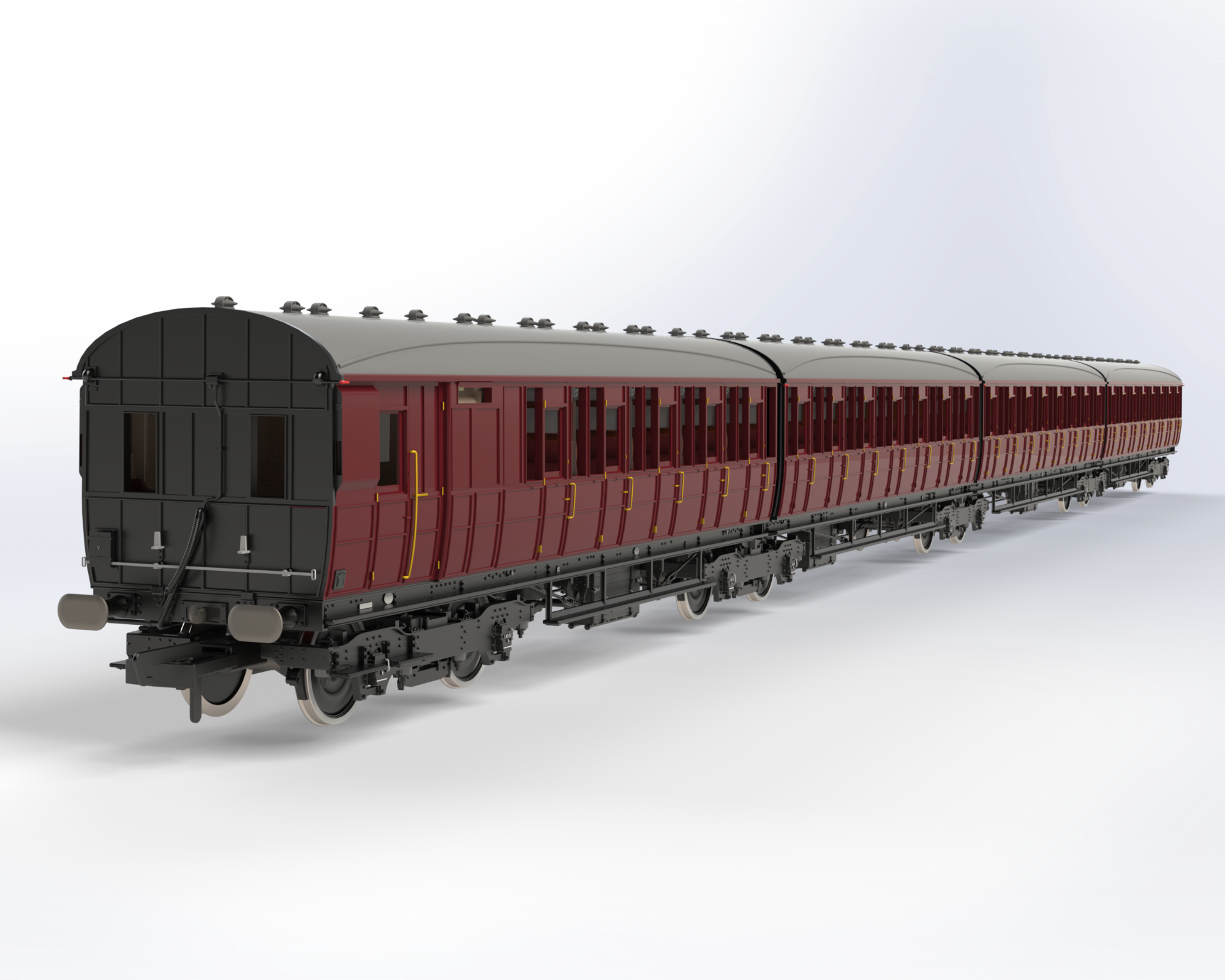

These Quad Art coaches were designed for Clark Railworks. With there unique shared bogies I developed a new active close coupling.
Quad Art Set - 1:76.2
These Quad Art coaches were designed for Clark Railworks. With there unique shared bogies I developed a new active close coupling.
Quad Art Set - 1:76.2

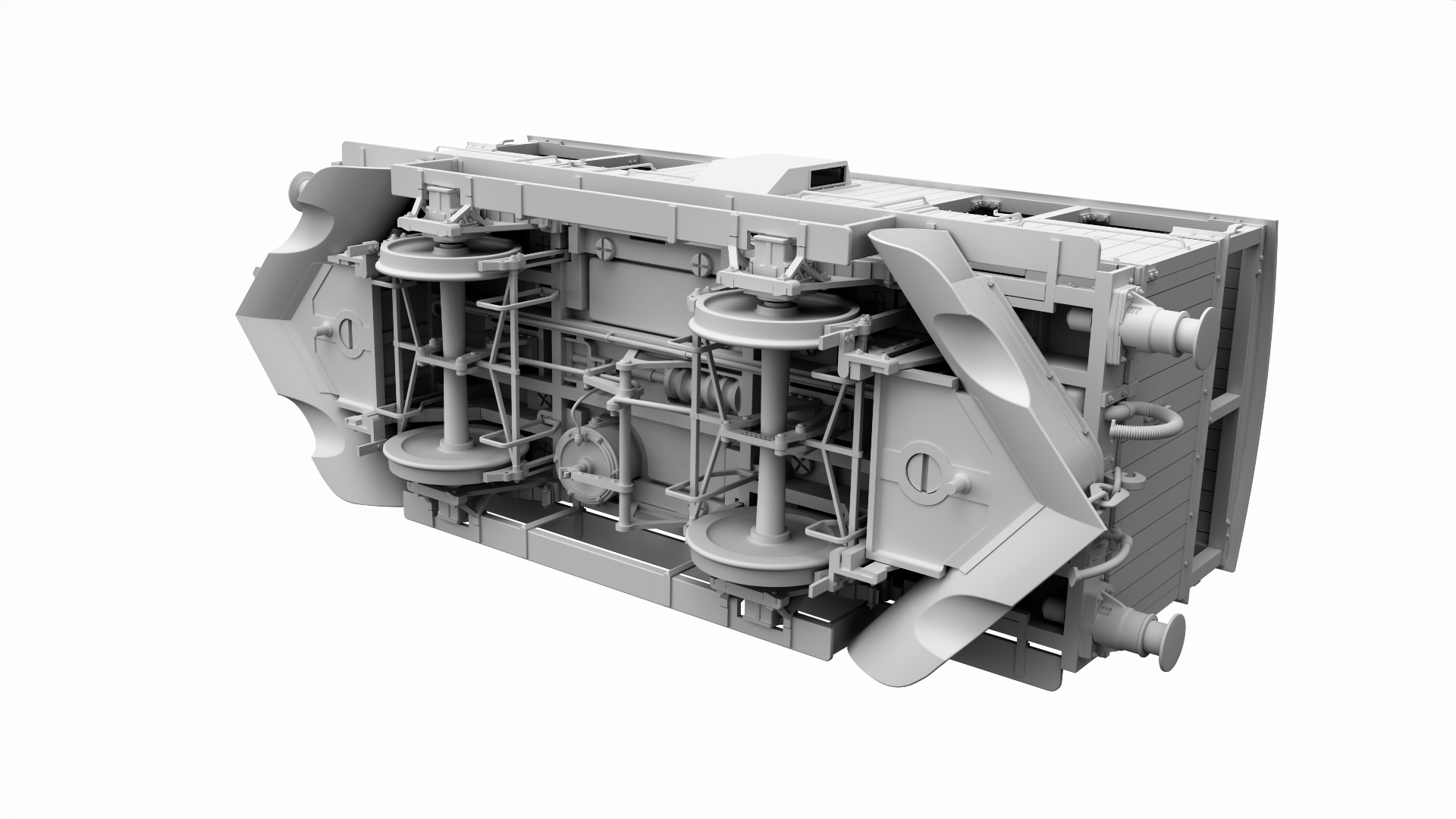

Shark Brake van designed and developed for Ellis Clark Trains, fitted with unique sprung plough so it can be adjusted by the customer.
Shark Brakevan - 1:43.5

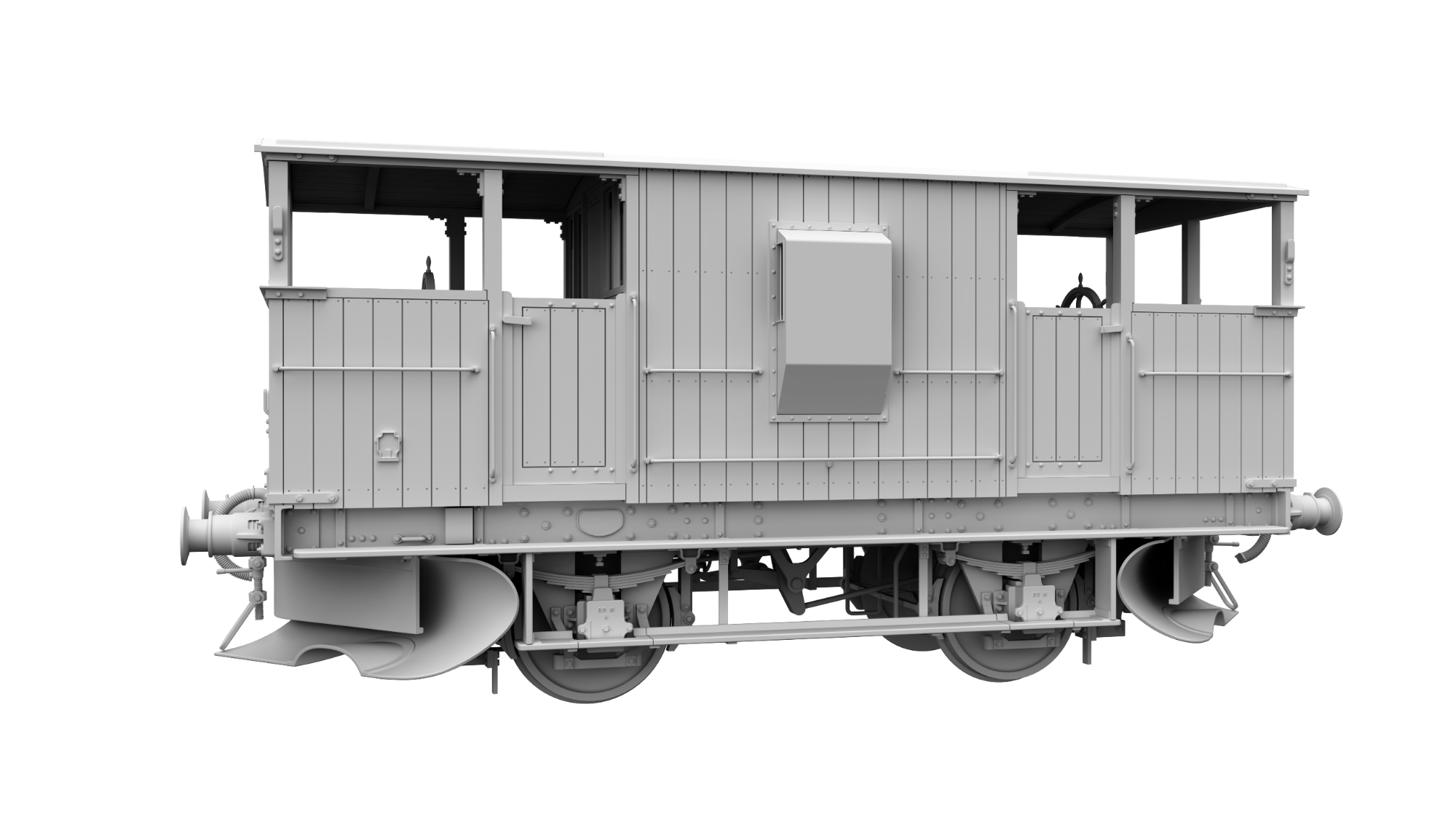

Shark Brake van designed and developed for Ellis Clark Trains, fitted with unique sprung plough so it can be adjusted by the customer.
Shark Brakevan - 1:43.5
This large model has been designed for multi material manufacture. Its simple build makes a complex and large kit easier to assemble.

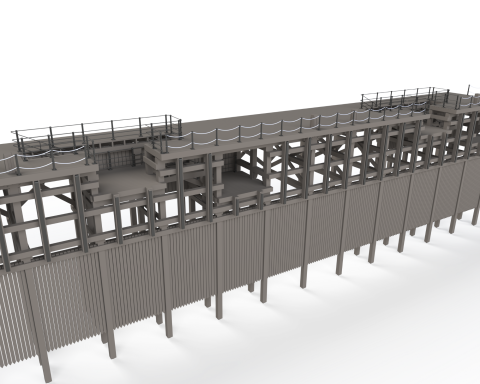

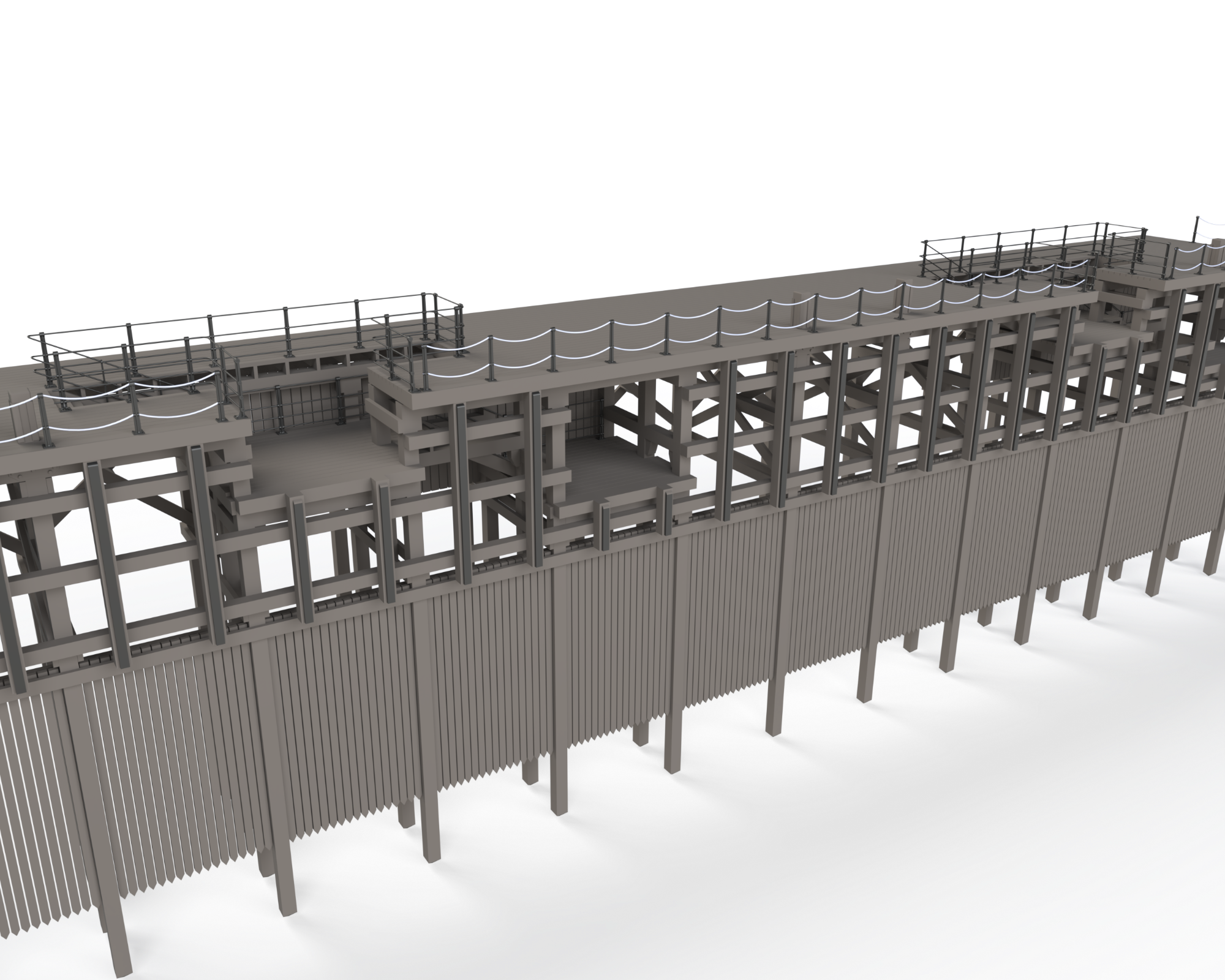

Original Cad for Pier Kit 1:43.5 + 1:76.2
This 1/24th scale model was designed for my own range of large scale industrial kits.

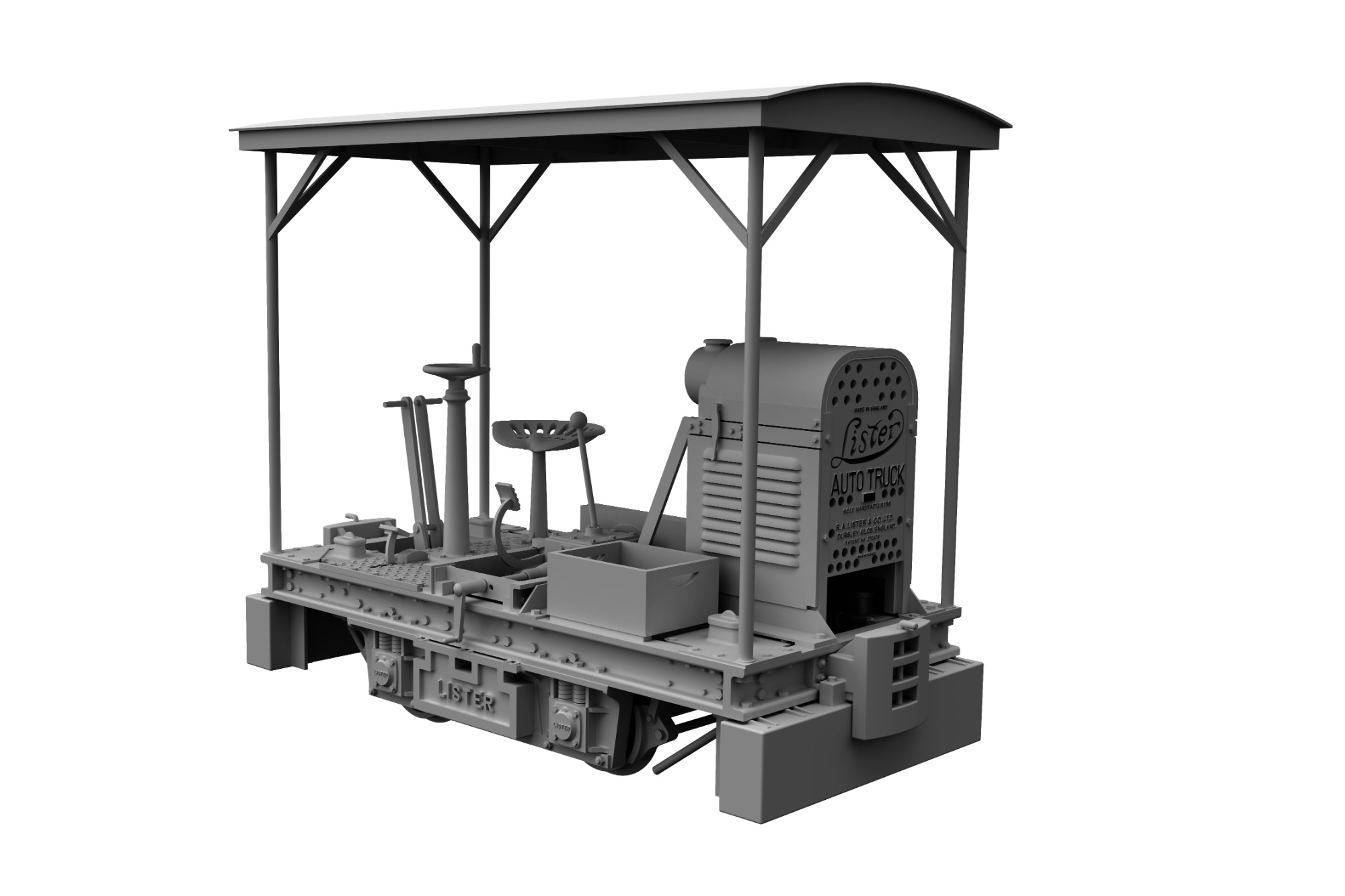

Lister Railtruck - 1:24

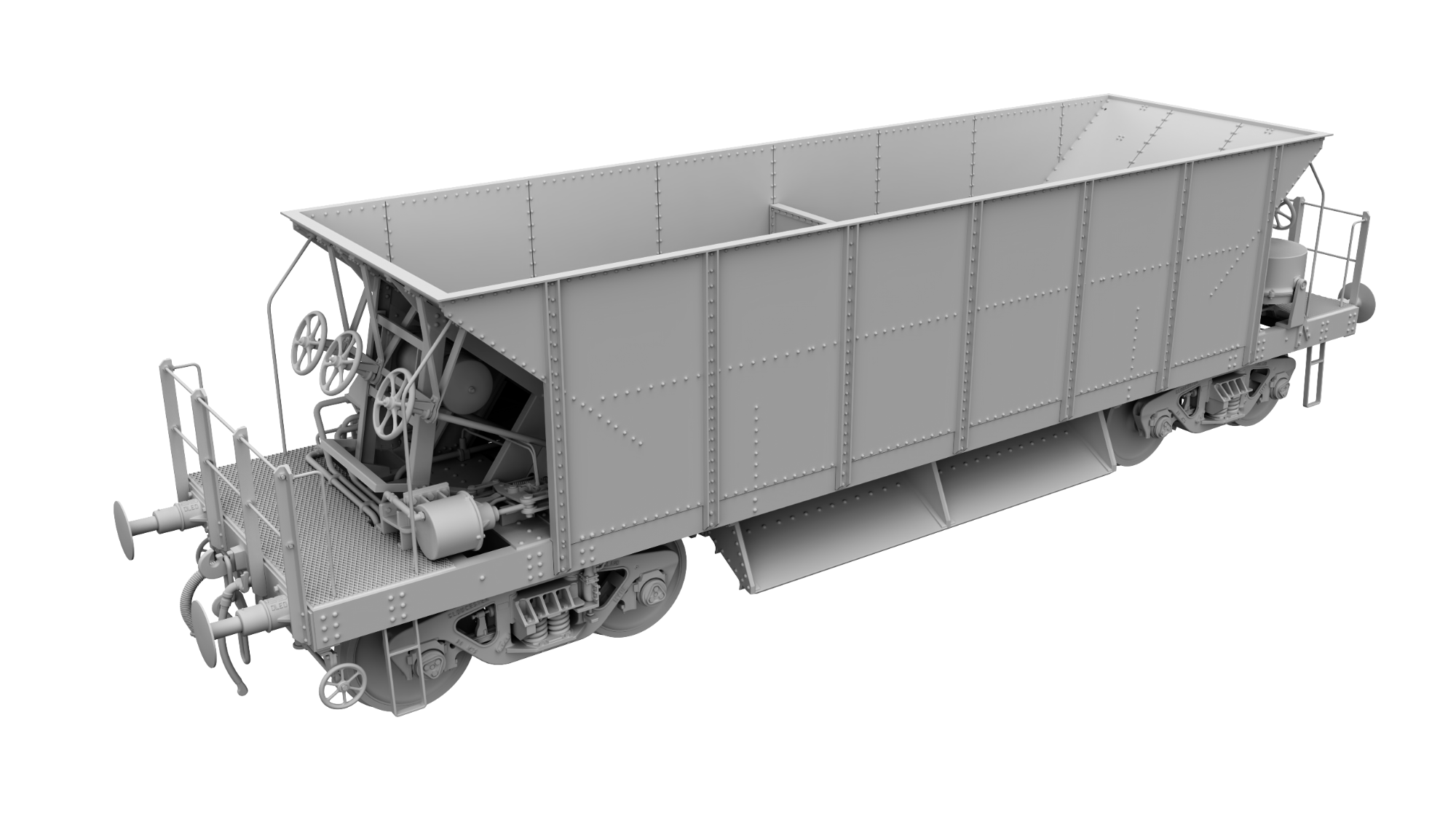

This ready to run product was developed for Ellis Clark Trains.

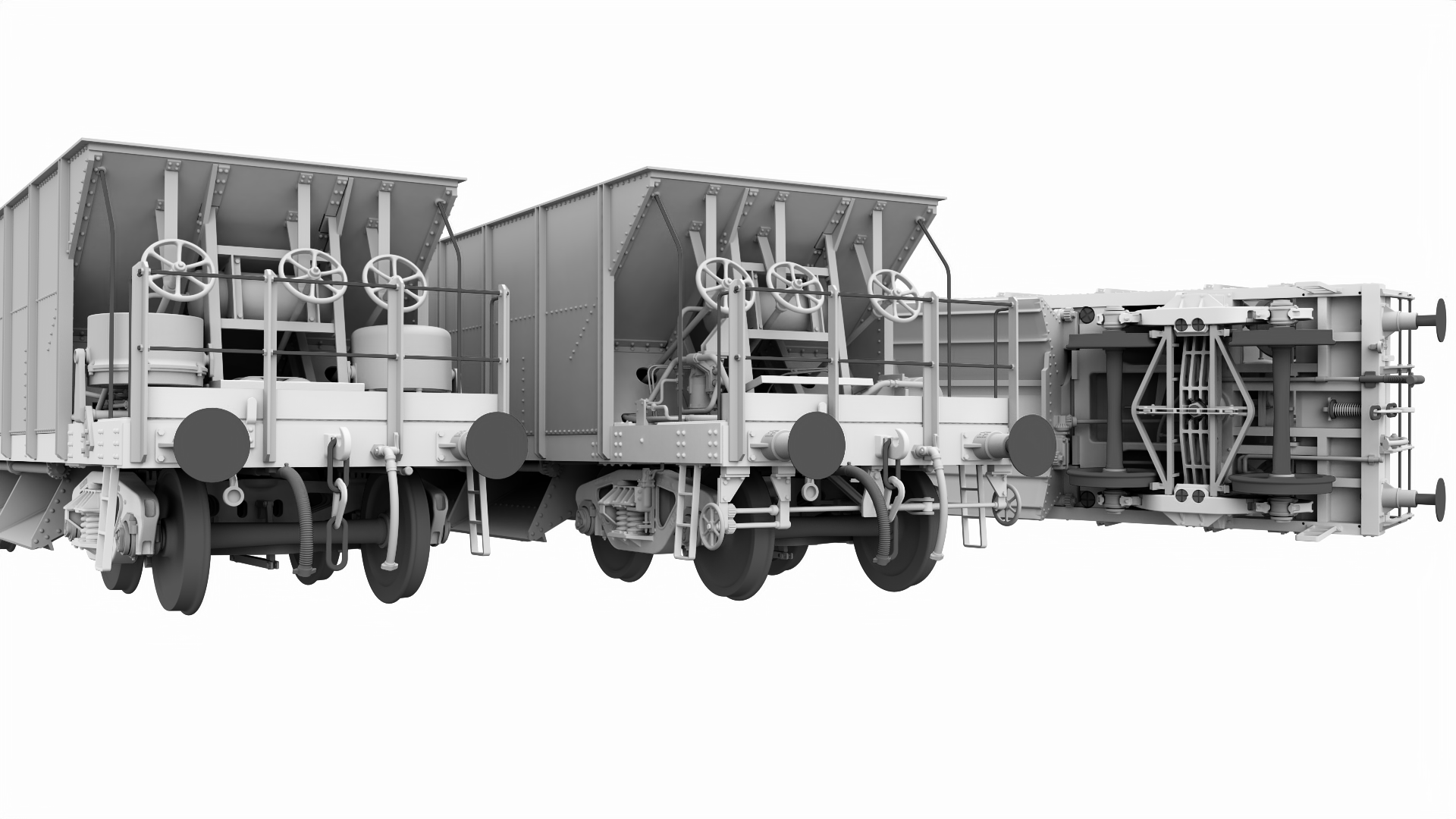

Seacow / Sealion - 1:43.5
This ready to run product was developed for Ellis Clark Trains.
Seacow / Sealion - 1:43.5
Cad final for Shed casting master.

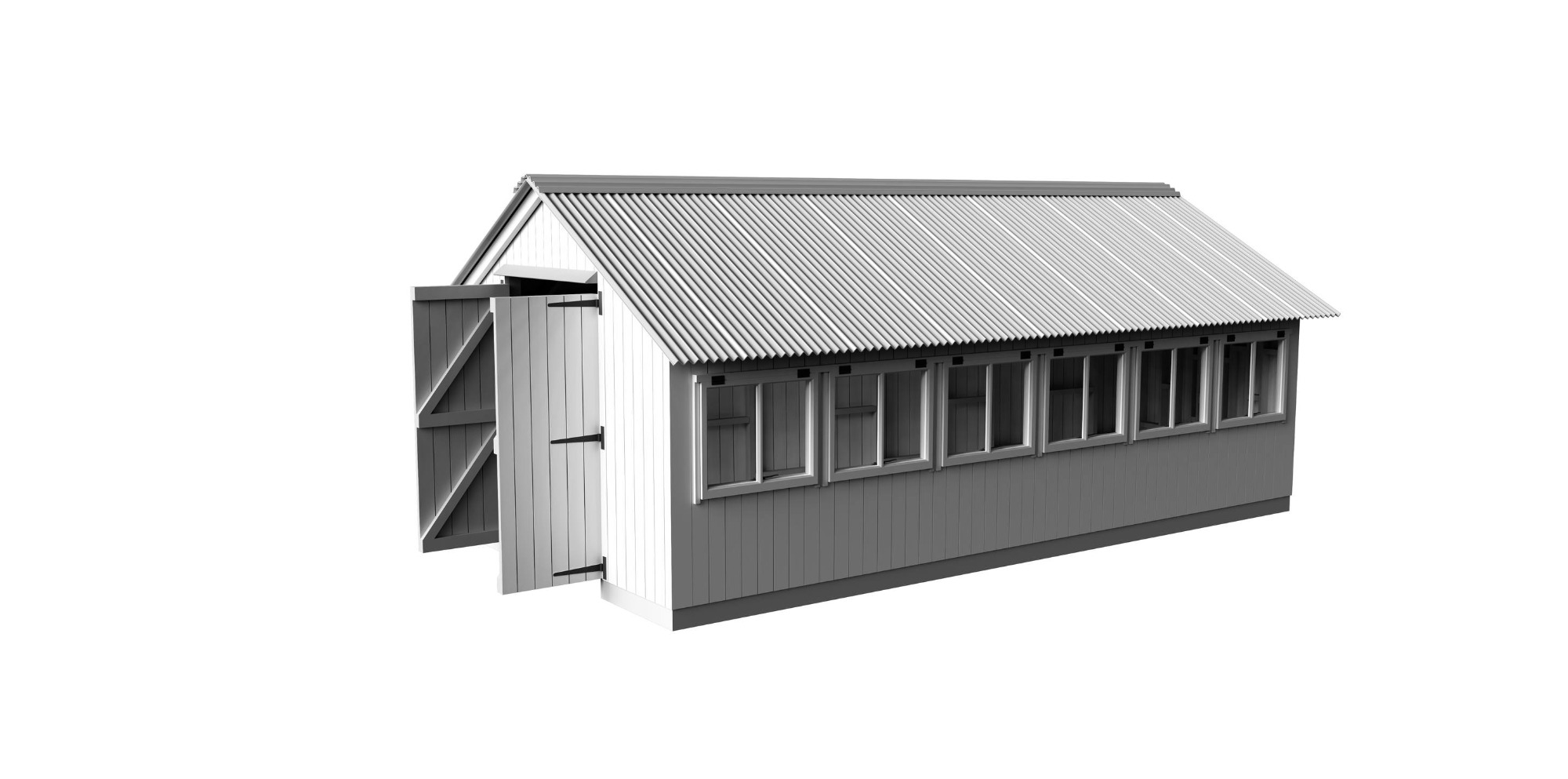

Original Shed Master - 1:43.5
Designed and engineered for both ready to use and kit manufacture, also developed for 1:24th scale. Render is O gauge.

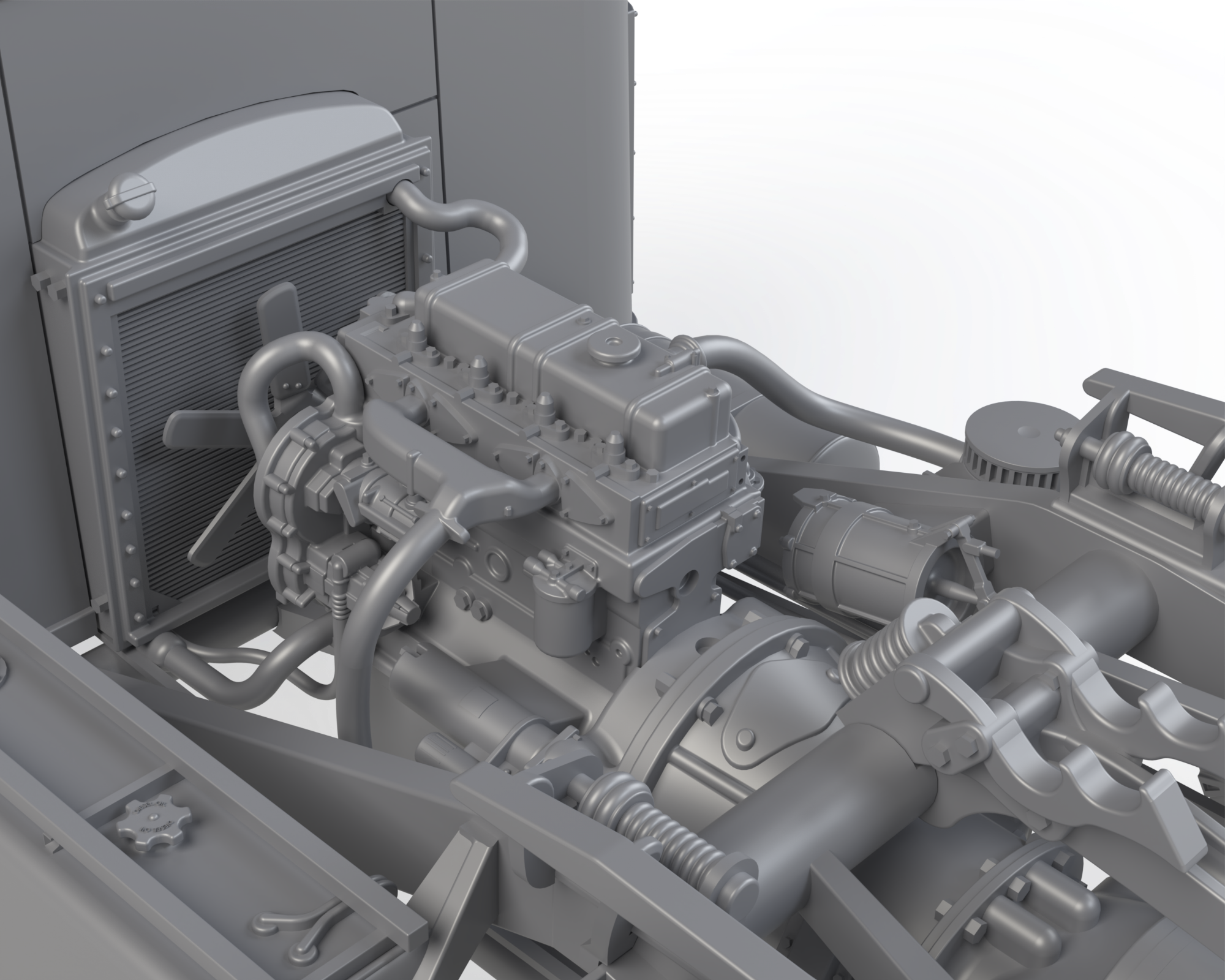

Scammell Scarab - 1:43.5
CAD design for both ready to use and kit manufacture, developed for 1:43.5 & 1:24th scale. CAD is O gauge.

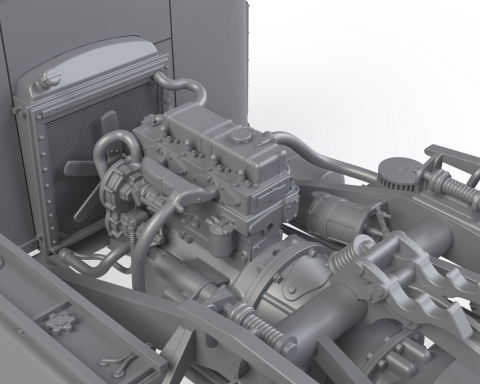

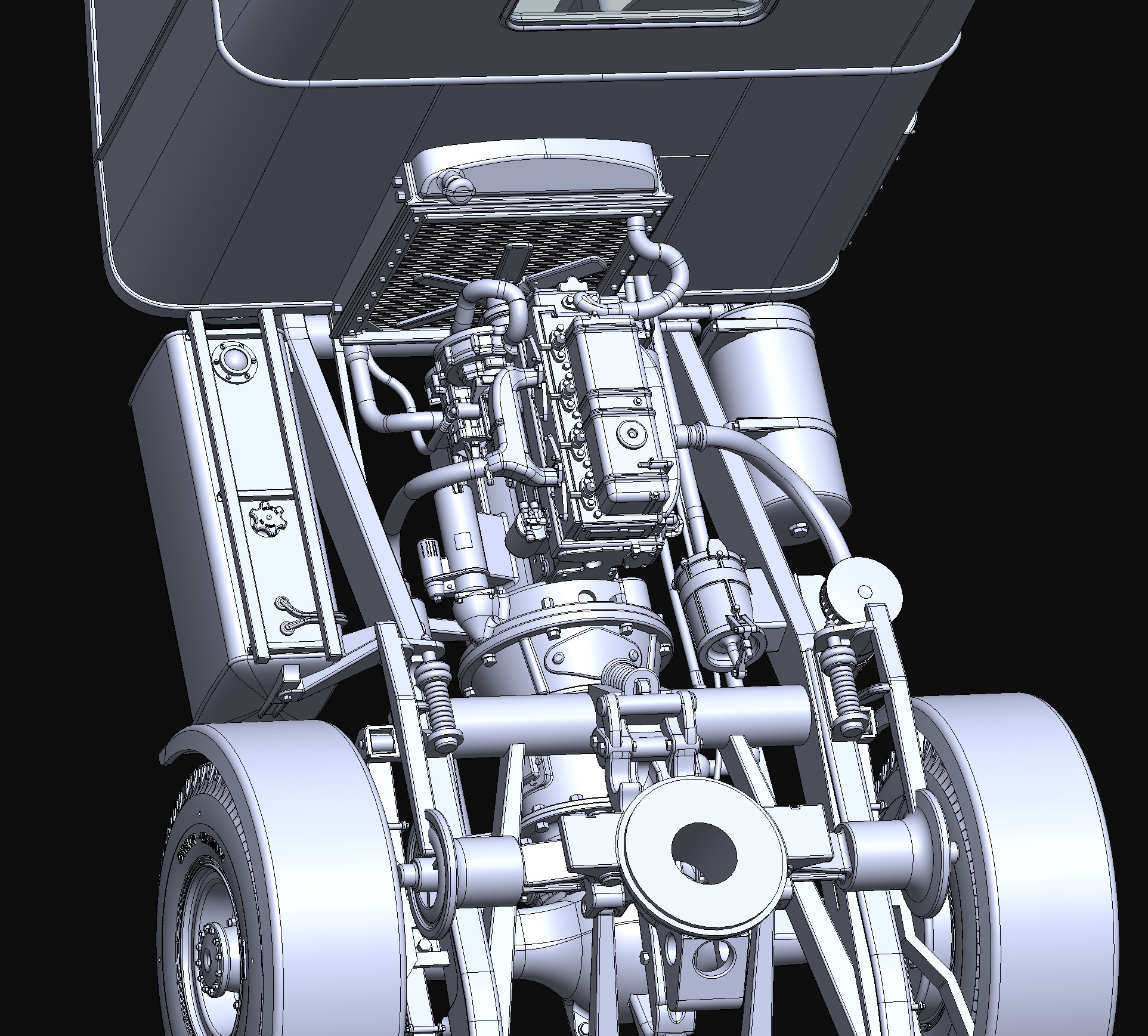

Scammell Scarab - 1:43.5

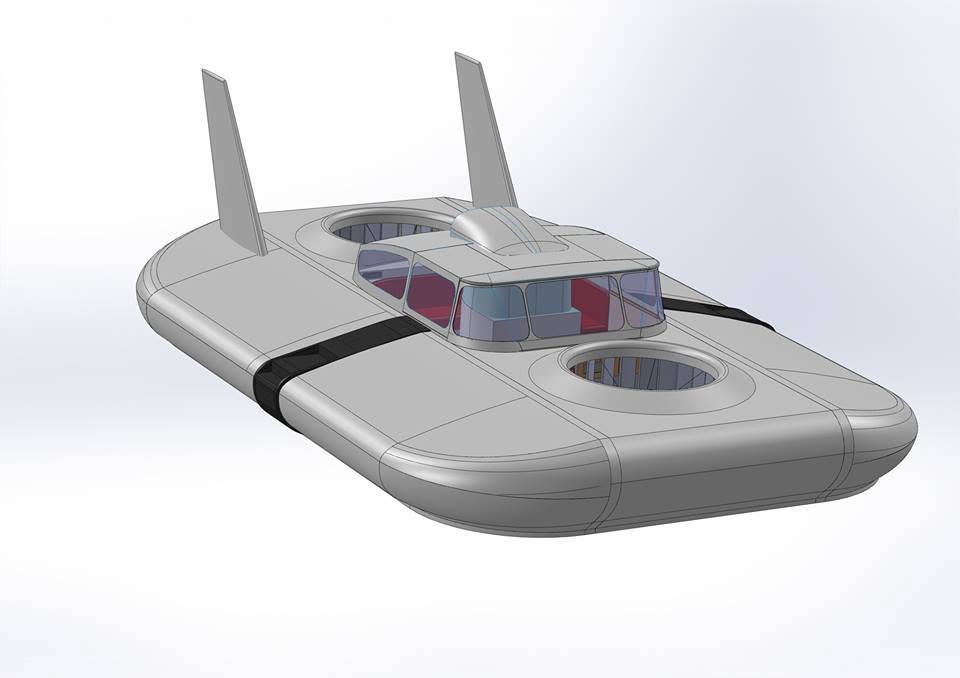

Cushion craft CC2 hovercraft kit design for fiberglass and multi media construction.
CC2 Hovercraft Kit - 1:6

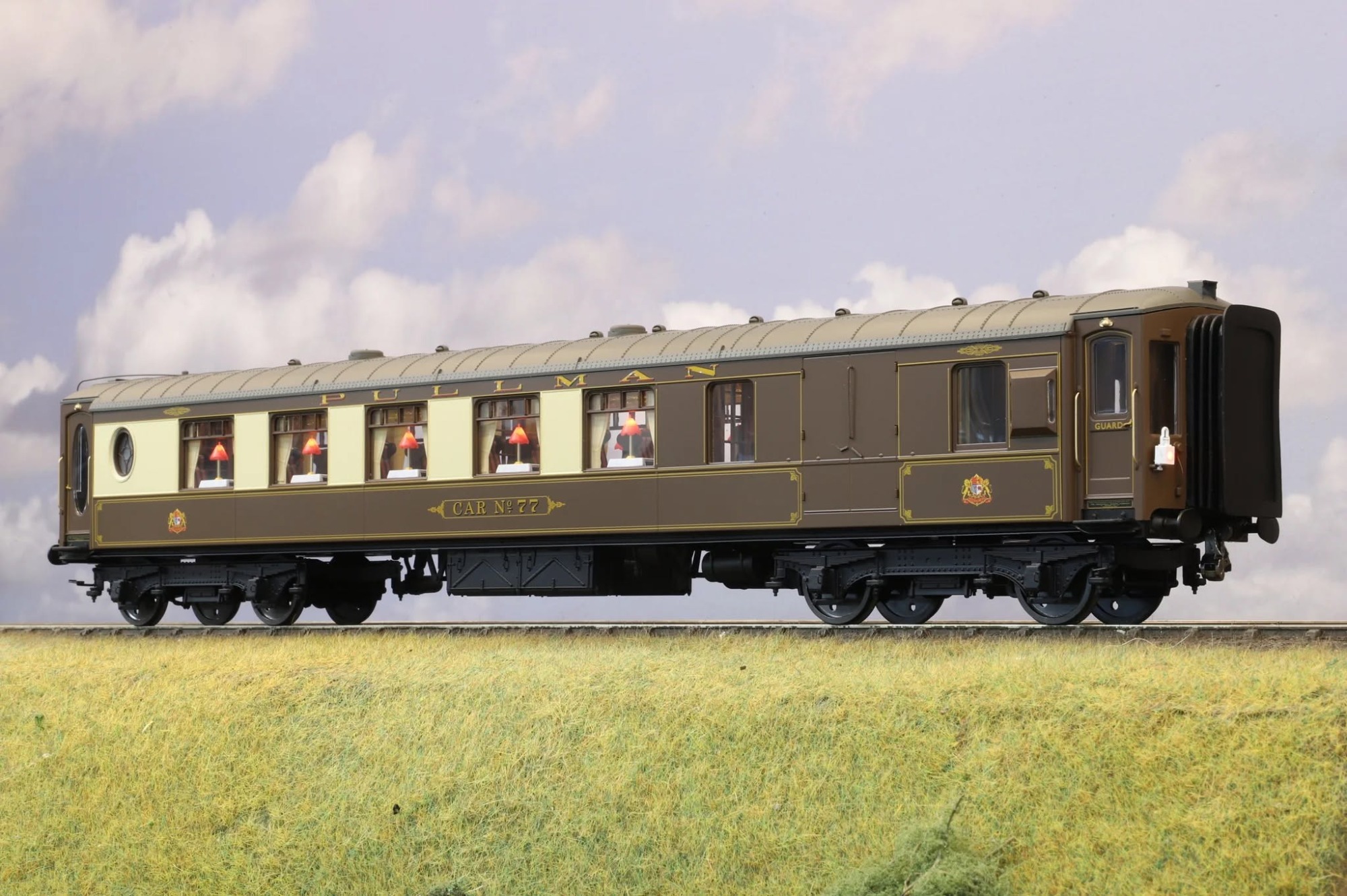

This ready to run coach was designed for Darstaed, the fantastic artwork and final finish was carried out by Darstaed's designer.
K Type Steel Pullman - 1:43.5

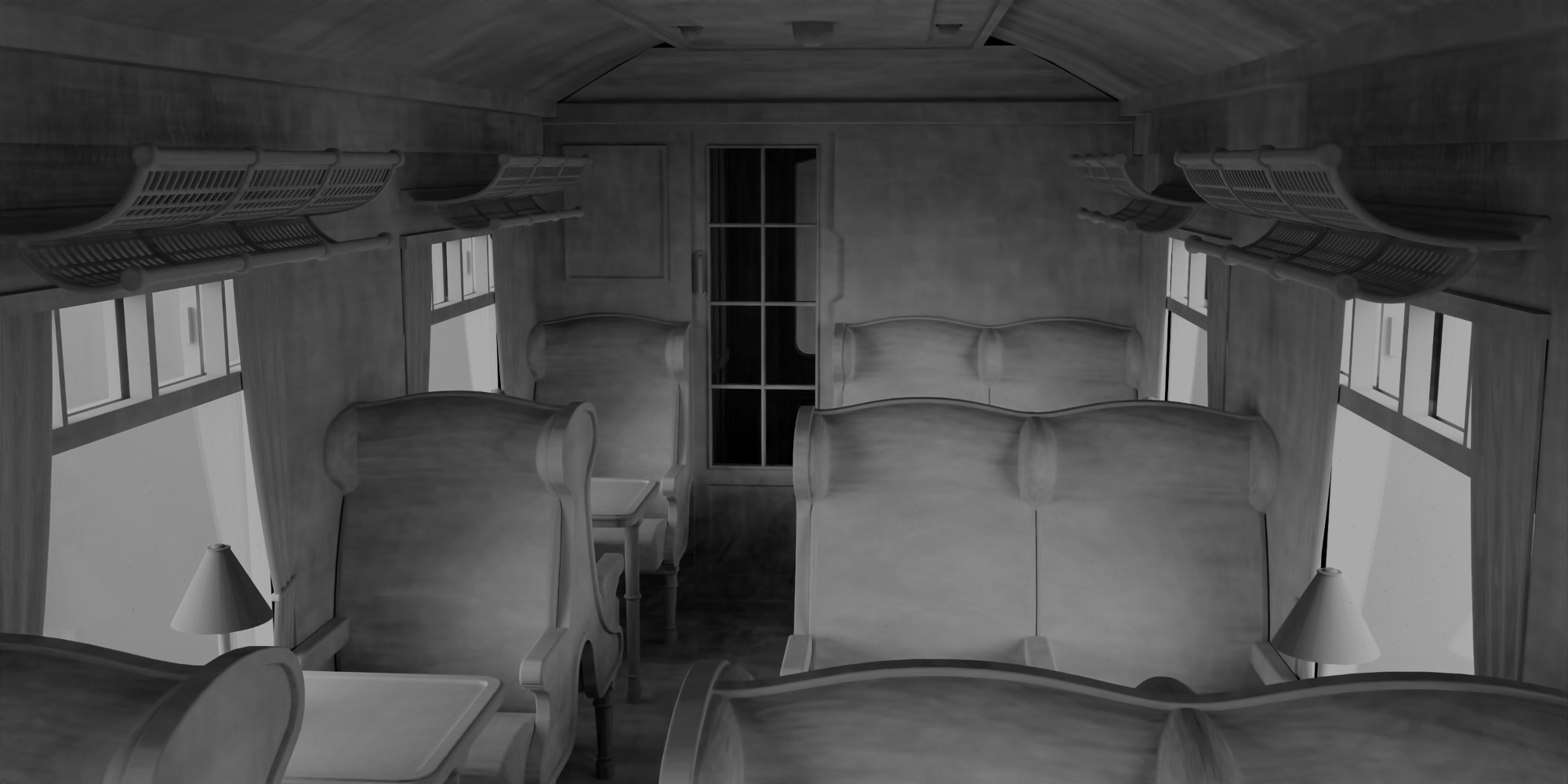

This ready to run coach was designed for Darstaed, interior render showing complete detail, first coach to have sandwich constructed walls.
K Type Steel Pullman - 1:43.5

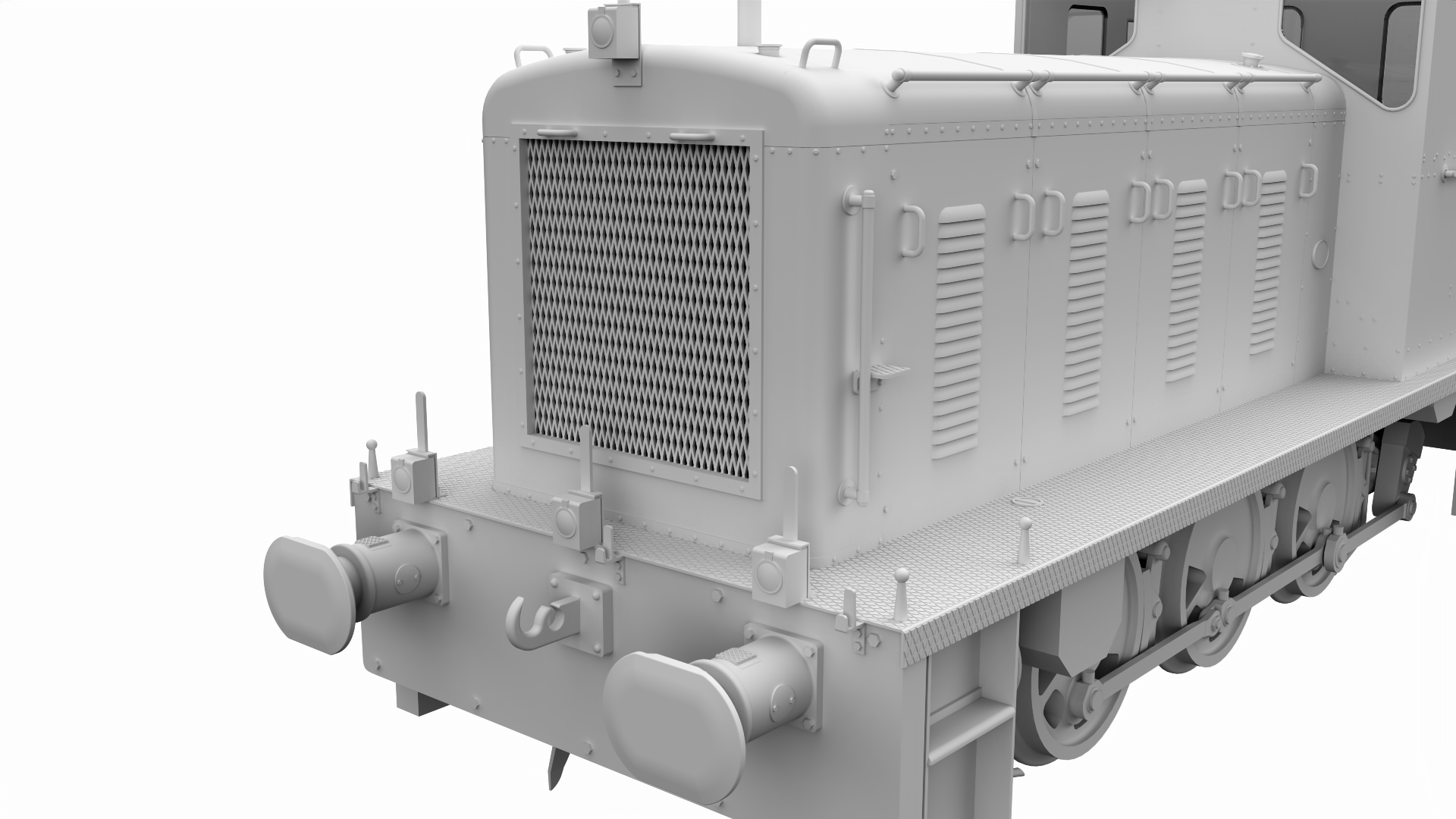

Cad model developed for a client for ready to run manufacture.
BR Class 04 Shunter - 1:43.5

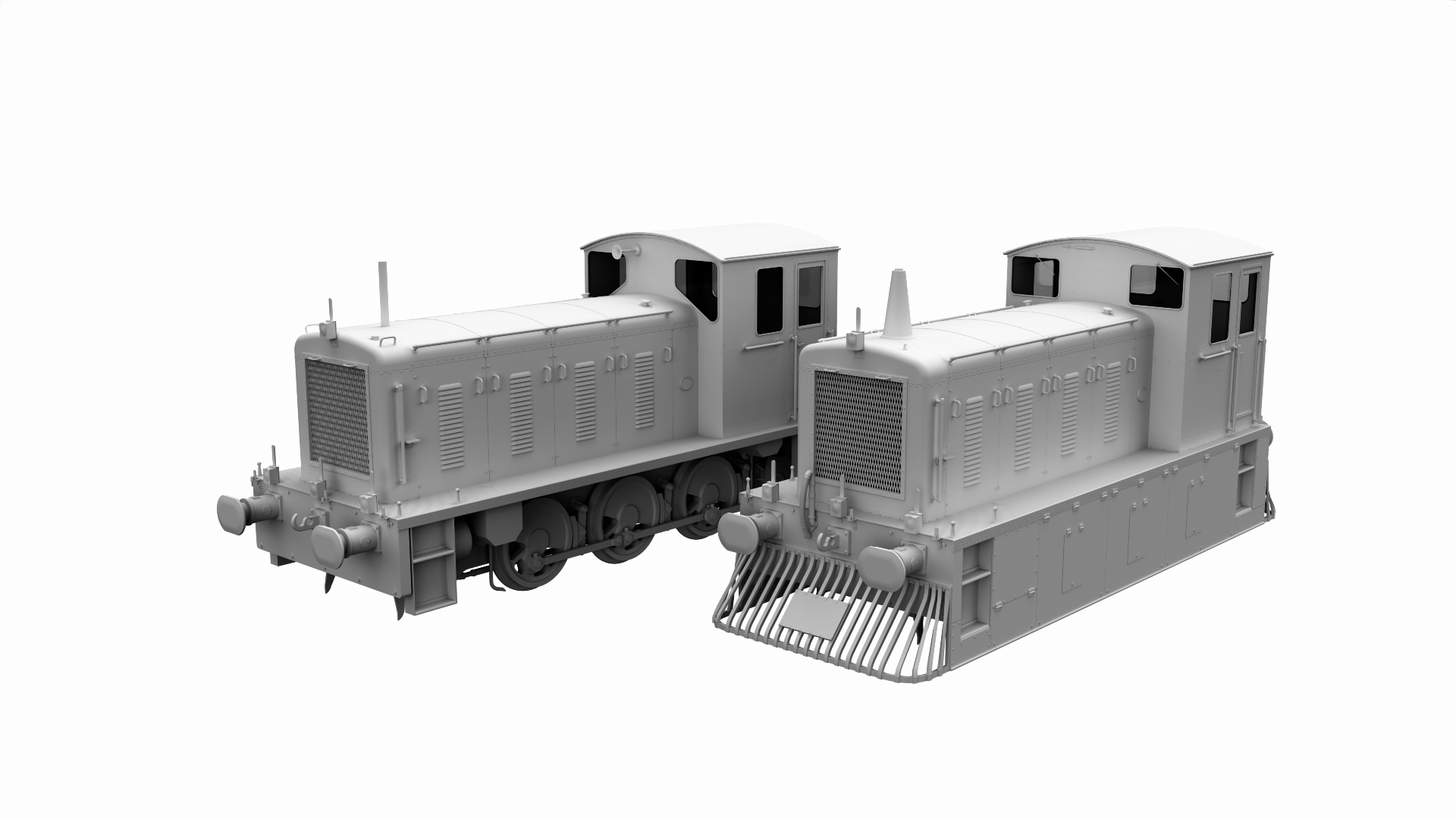

Cad models developed for a client for ready to run manufacture.
BR Class 04 - 1:43.5

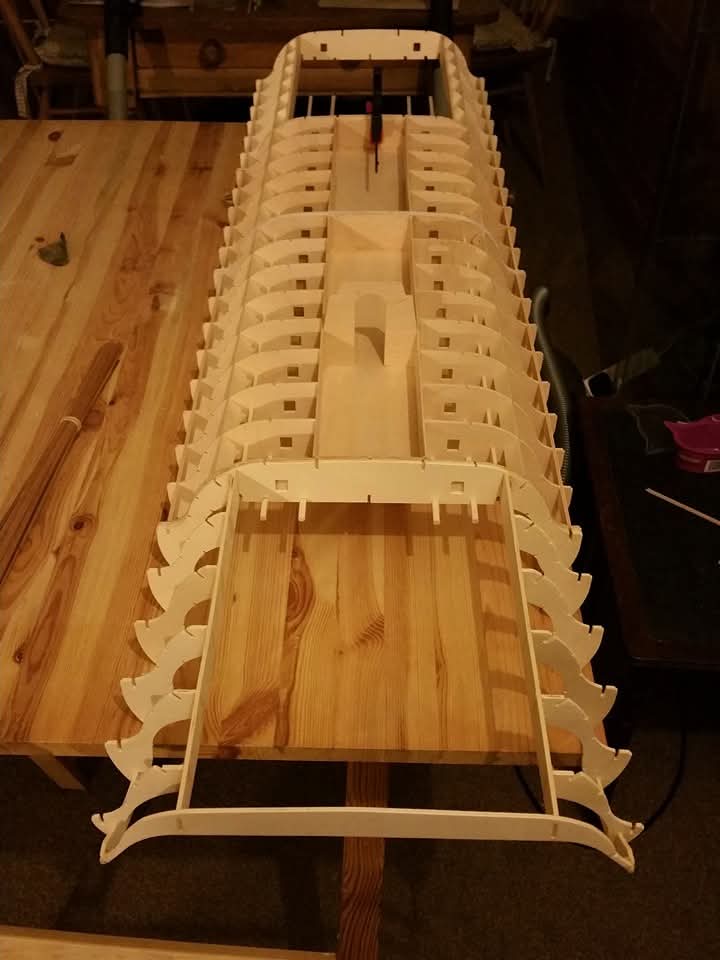

Large scale CNC cut frame set for an 1936 L5 hovercraft test hull.
Levkov L5 Hovercraft Frames 1:6
This ready to run model was designed and developed for Clark Railworks consisting of new production methods and material choices.

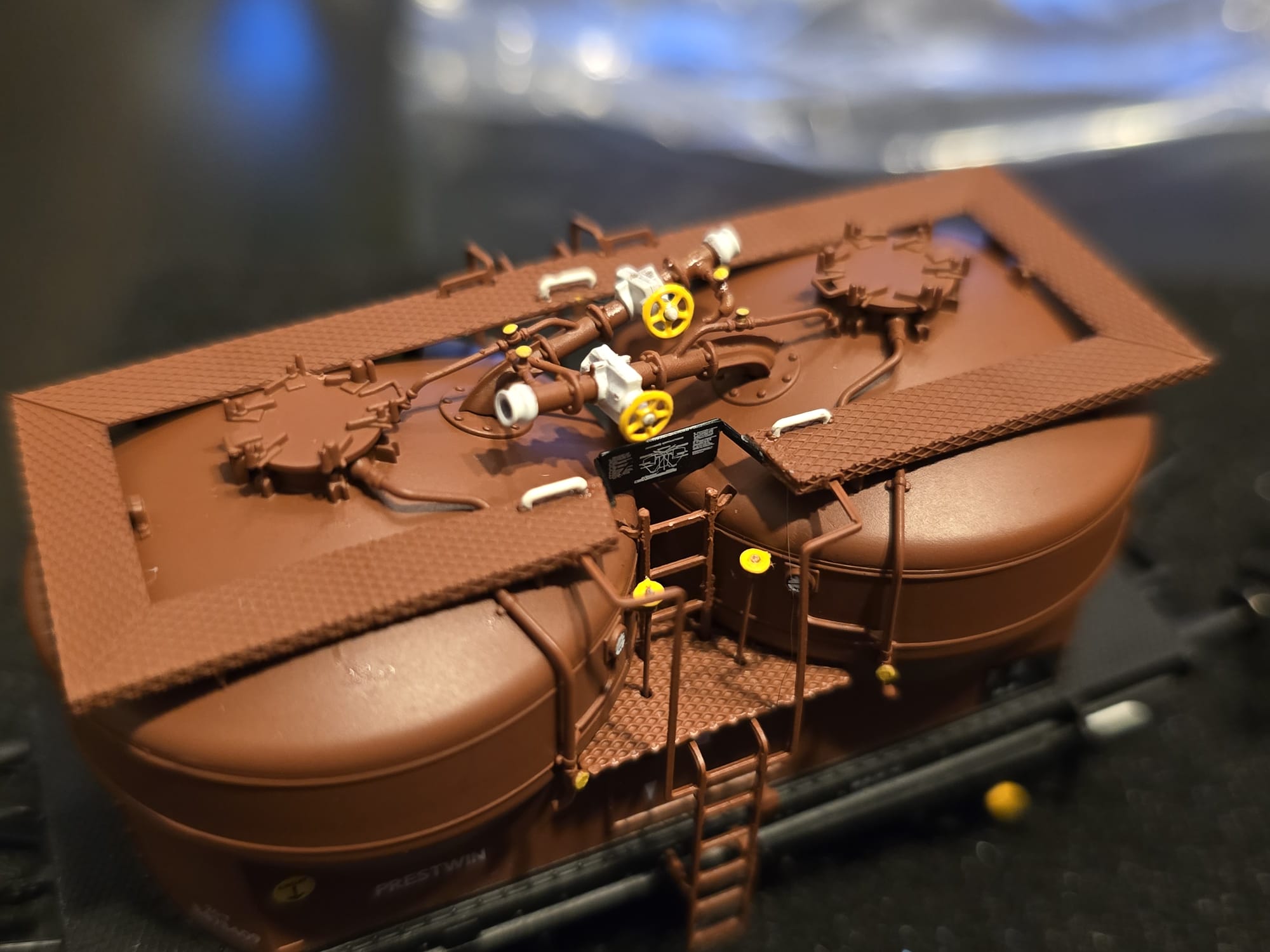

BR Prestwin - 1:76.2
This ready to run wagon was developed for Clark Railworks. It had a little more complexity with an open die-cast open chassis.

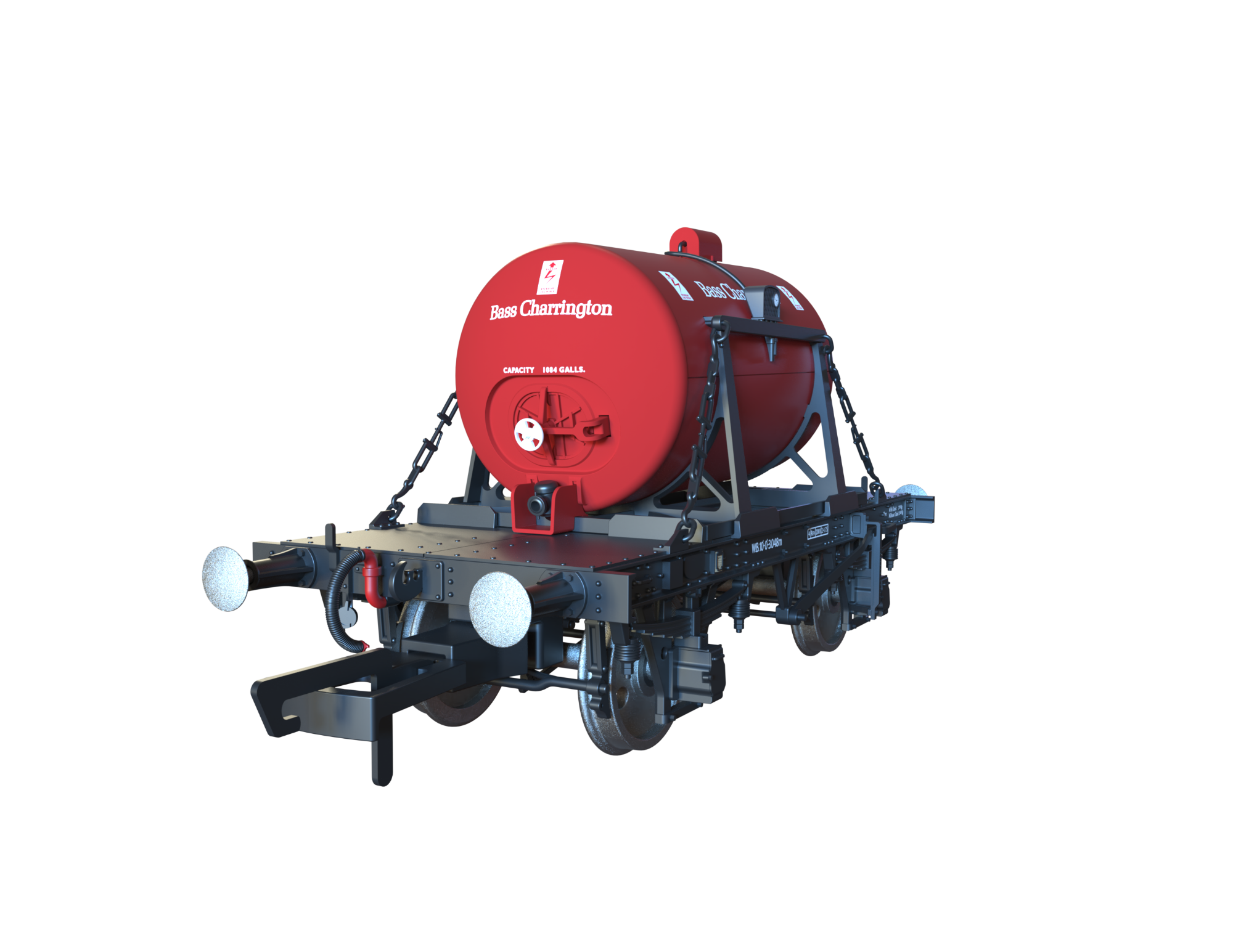

The Demountable Tank

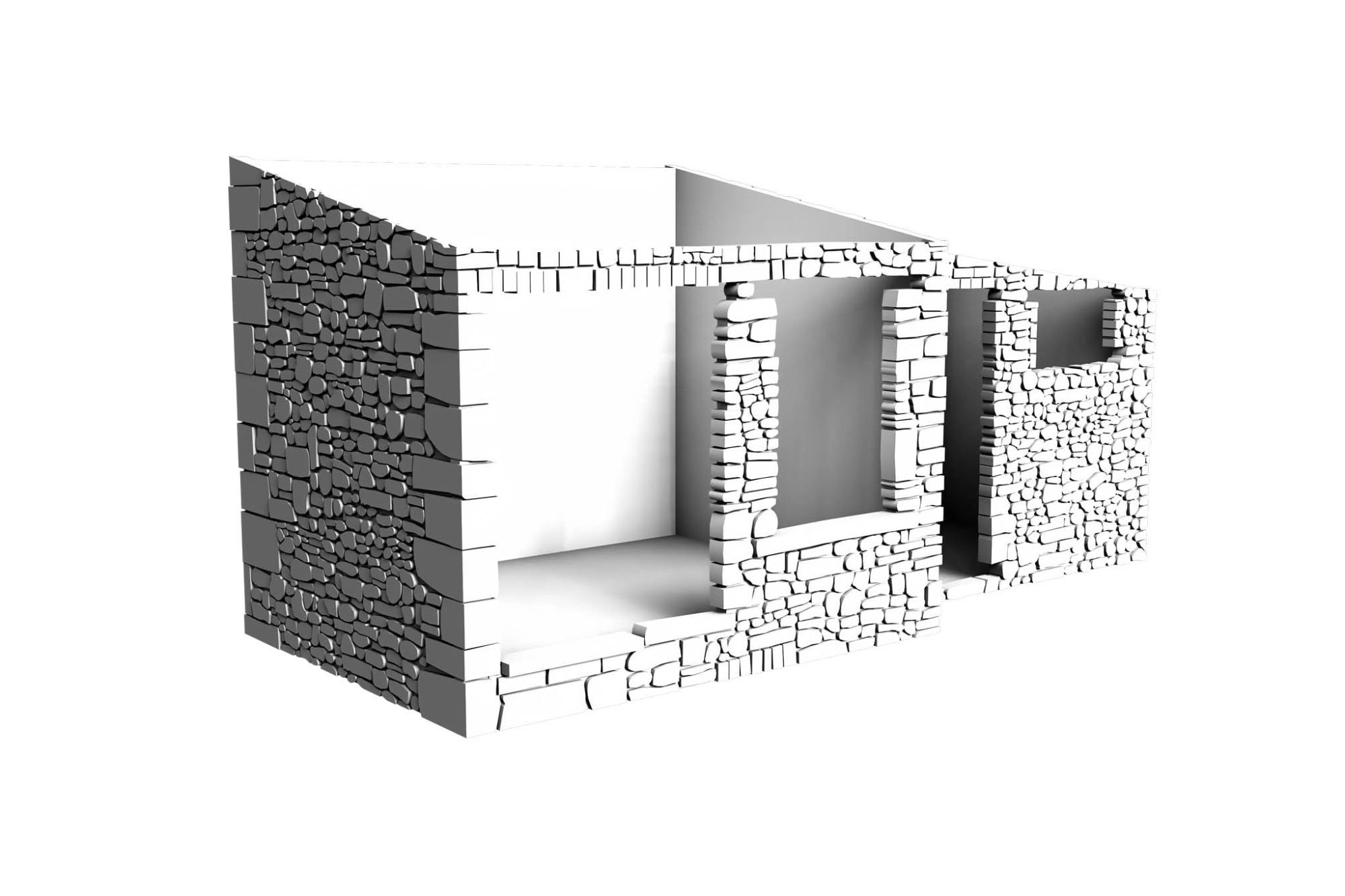

Multi media kit designed for short run manufacture for a client. The roof was particularly complex and had to be strong and easy to assemble

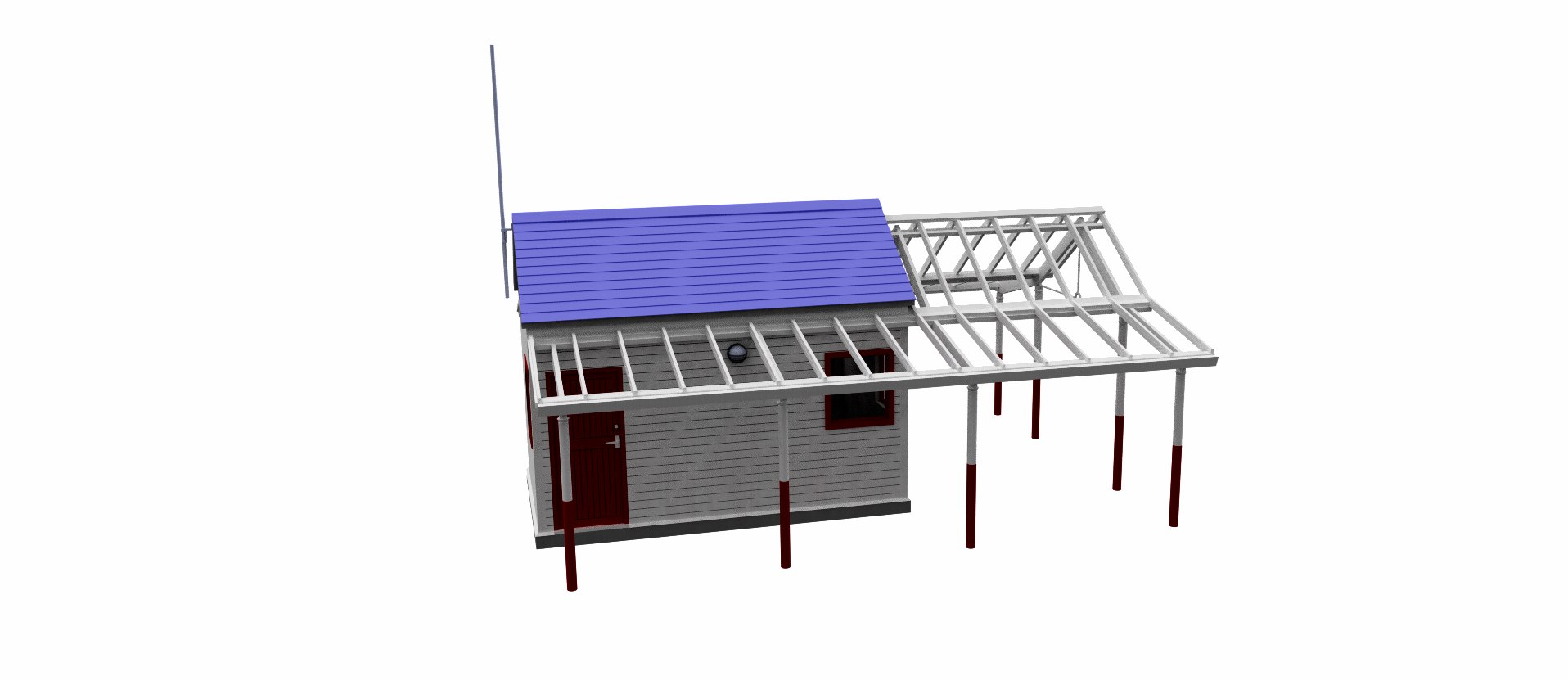

Small Station - 1:76.2

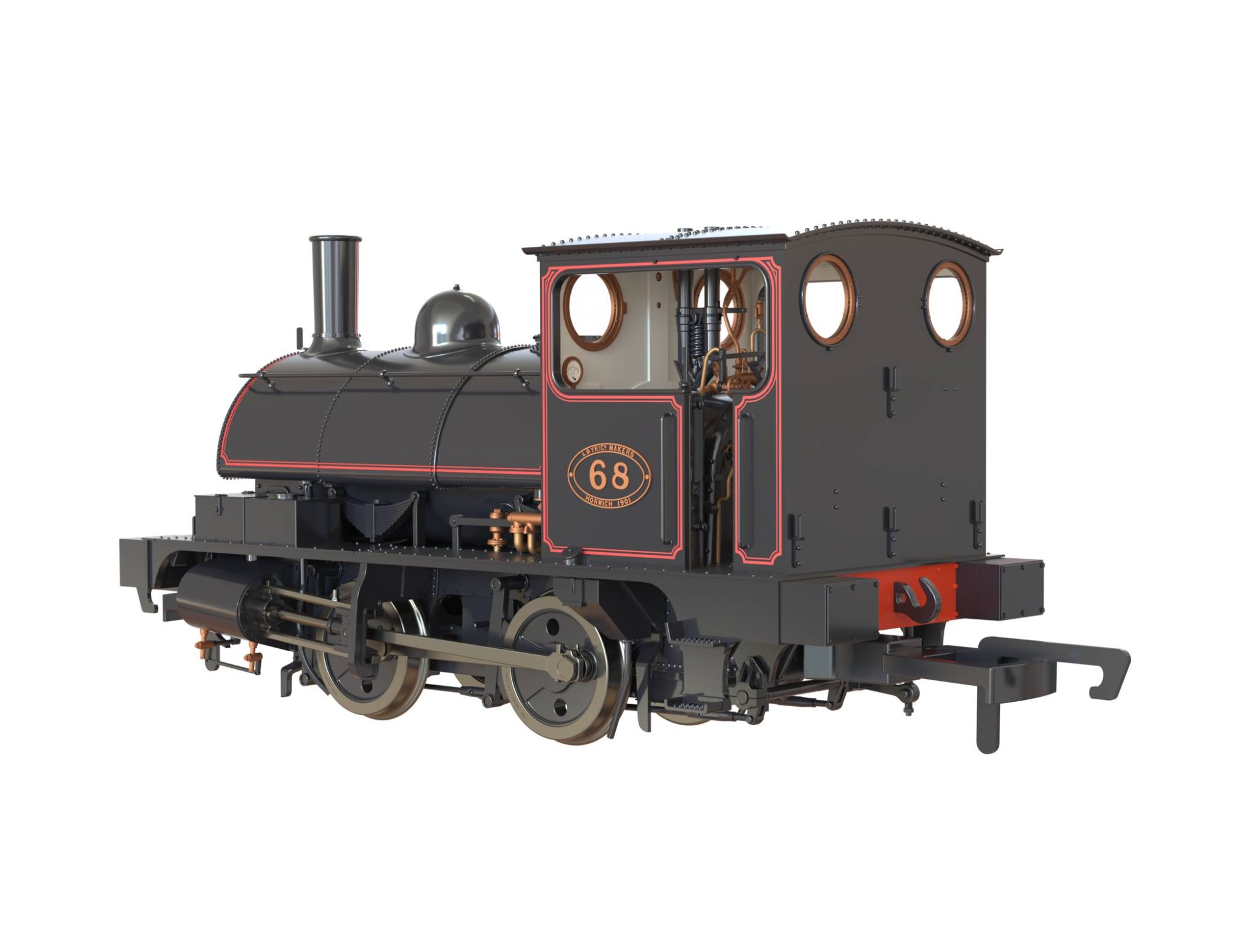

This O gauge model CAD render shows the final model designed and developed for Ellis Clark Trains.
L&YR Class 21 "Pug" - 1:43.5

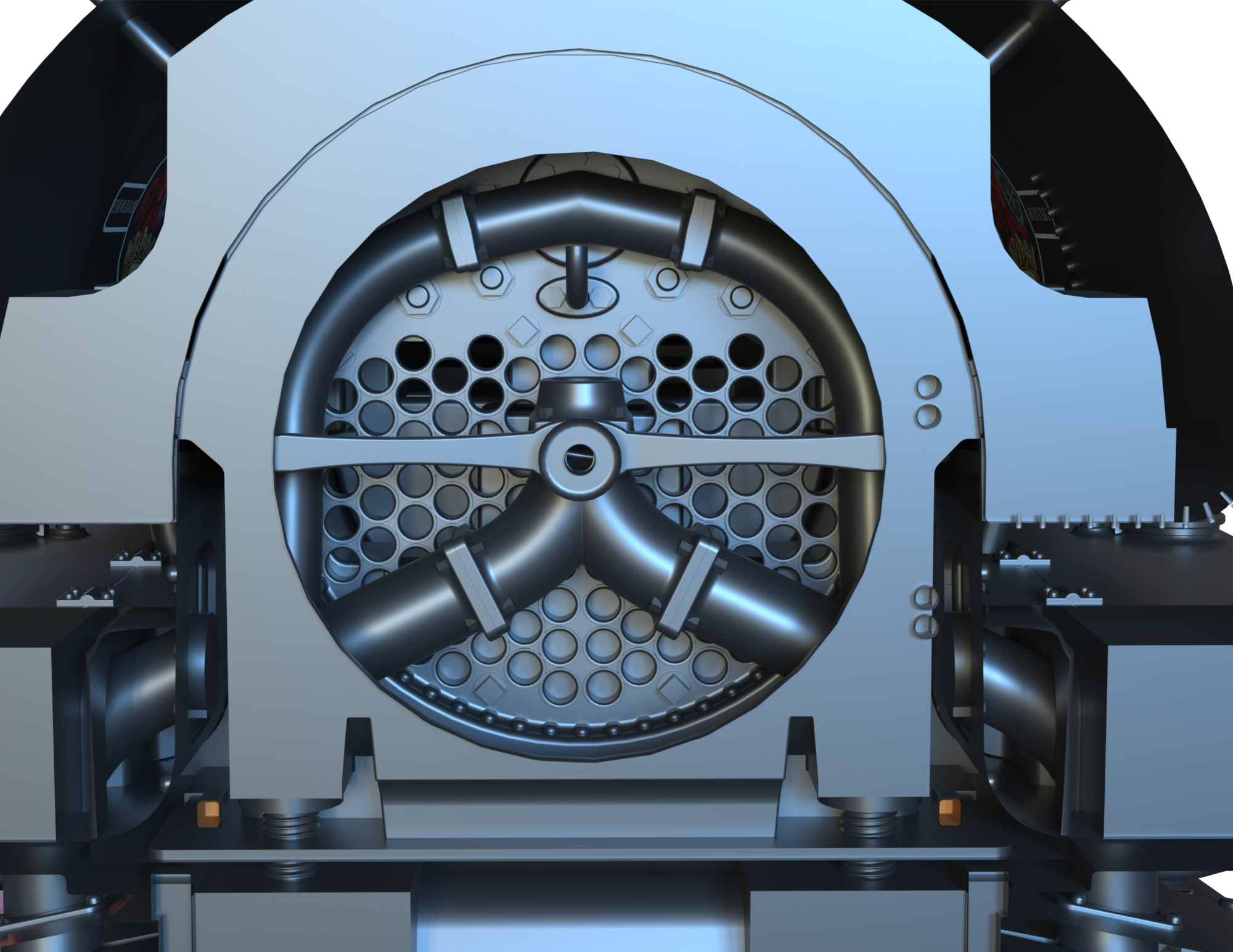

This O gauge model was designed and developed for Ellis Clark Trains. An opening smoke box door and full interior detail was also added.

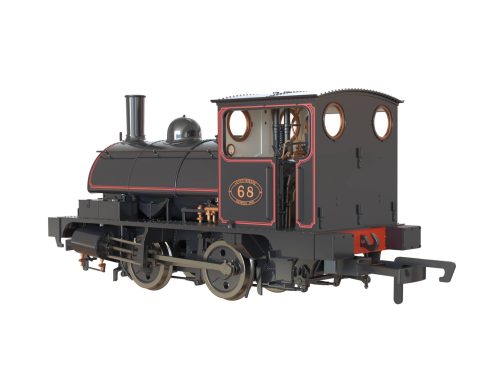

L&YR Class 21 "Pug" - 1:43.5

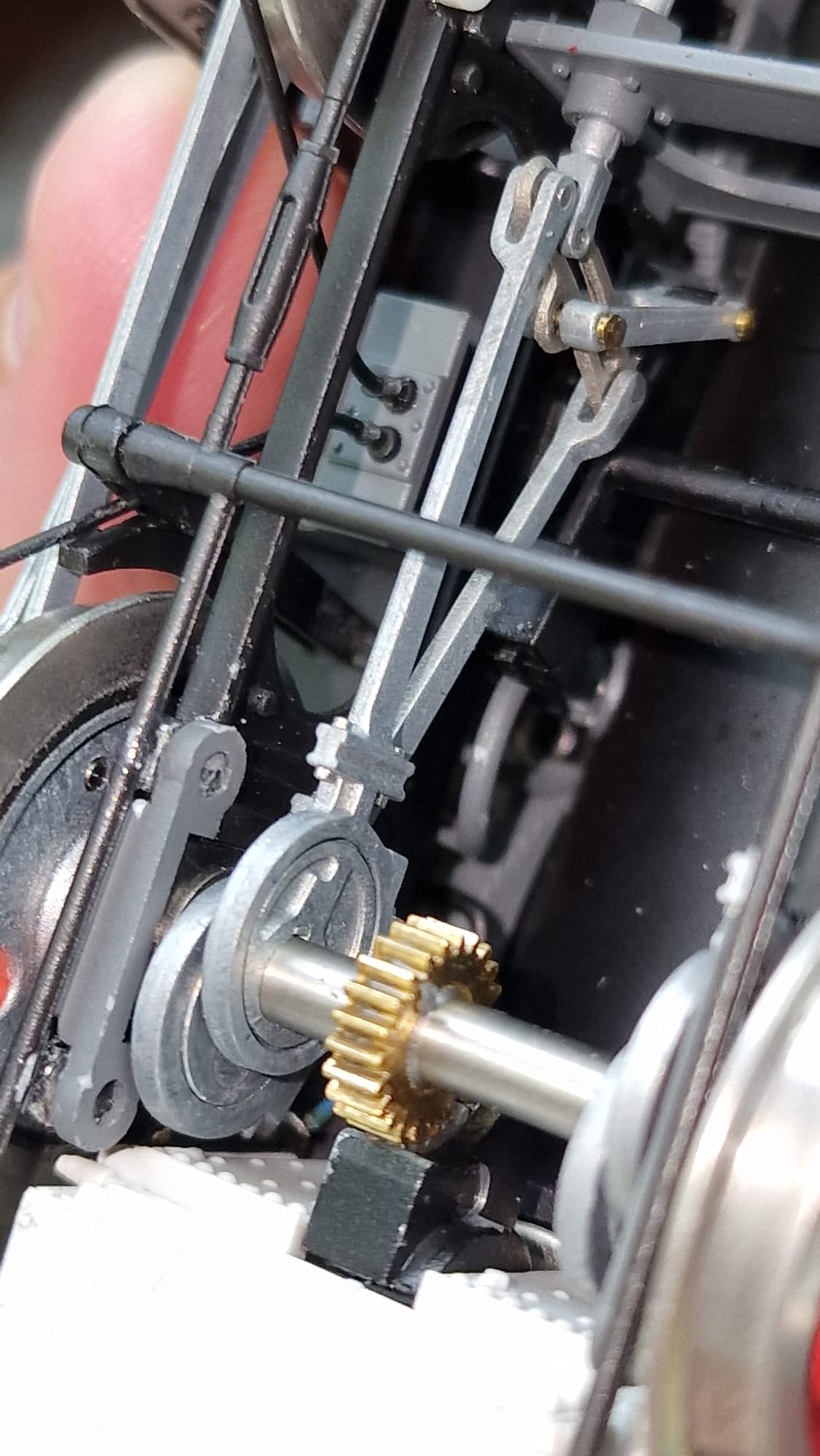

This O gauge model was designed and developed for Ellis Clark Trains. Mostly Die-cast with full working inside motion and very fine detail.
L&YR Class 21 "Pug" - 1:43.5

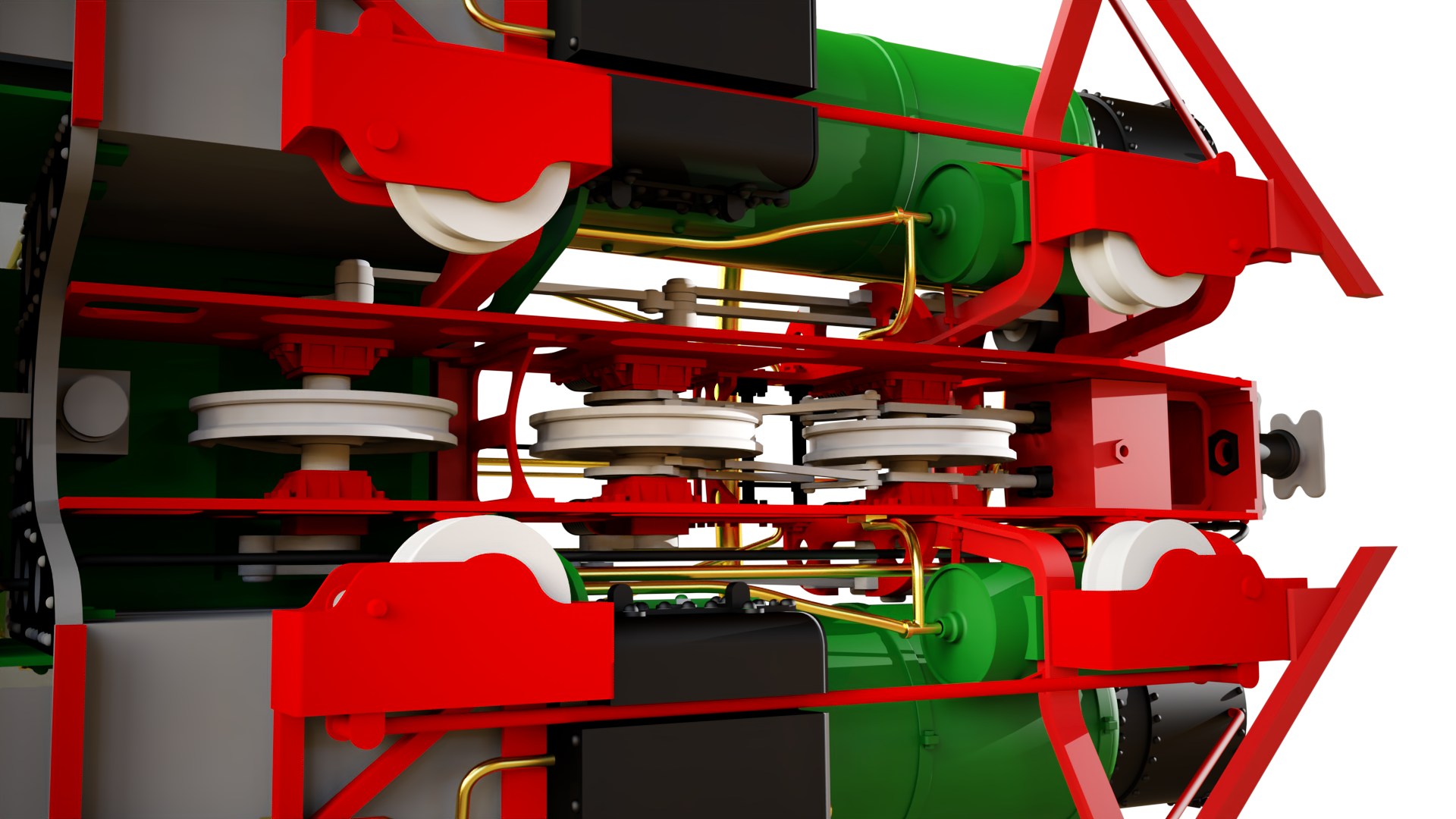

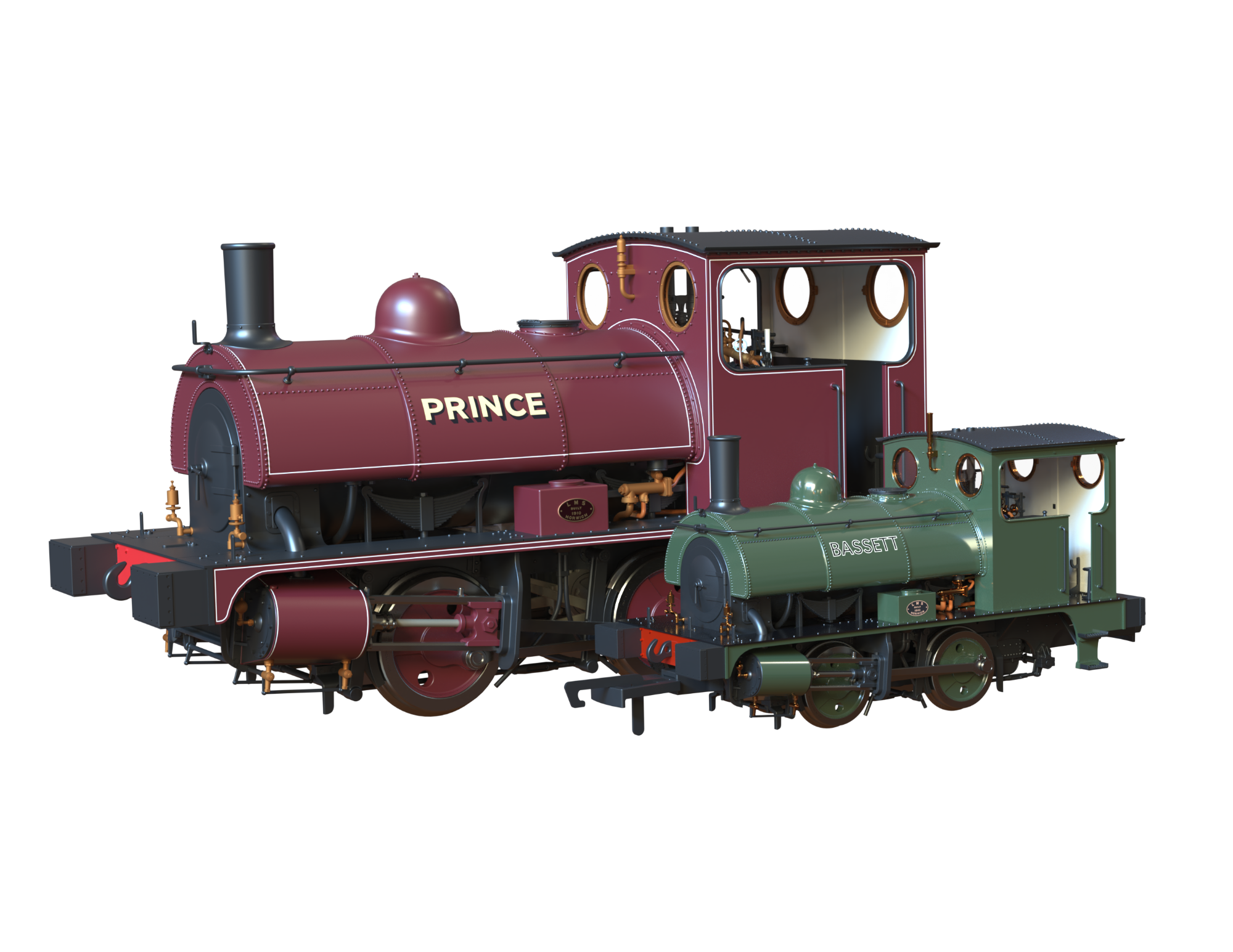

These Pug models were designed, engineered and developed for Ellis Clark & Clark Railworks with a number of innovations in both models.
L&YR Class 21 "Pug" - 1:43.5 + 1:76.2
Cab interior for the OO Gauge pug, designed and engineered for Clark Railworks. Particular care was taken with material choice and tooling.

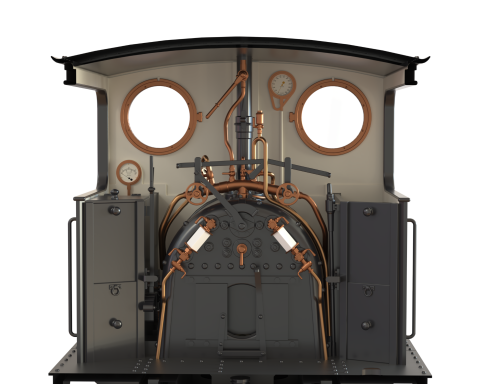

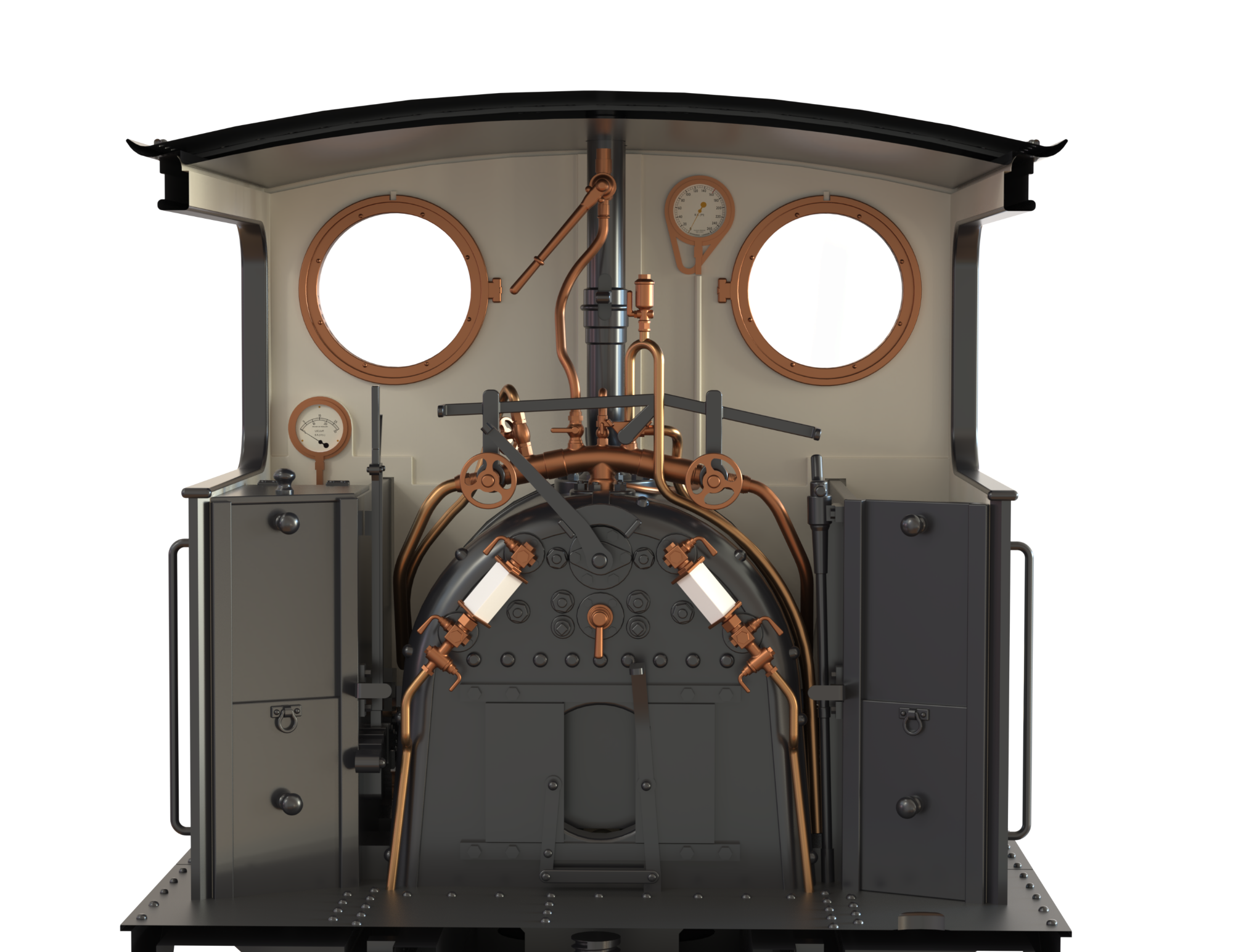

L&YR Class 21 "Pug" - 1:76.2

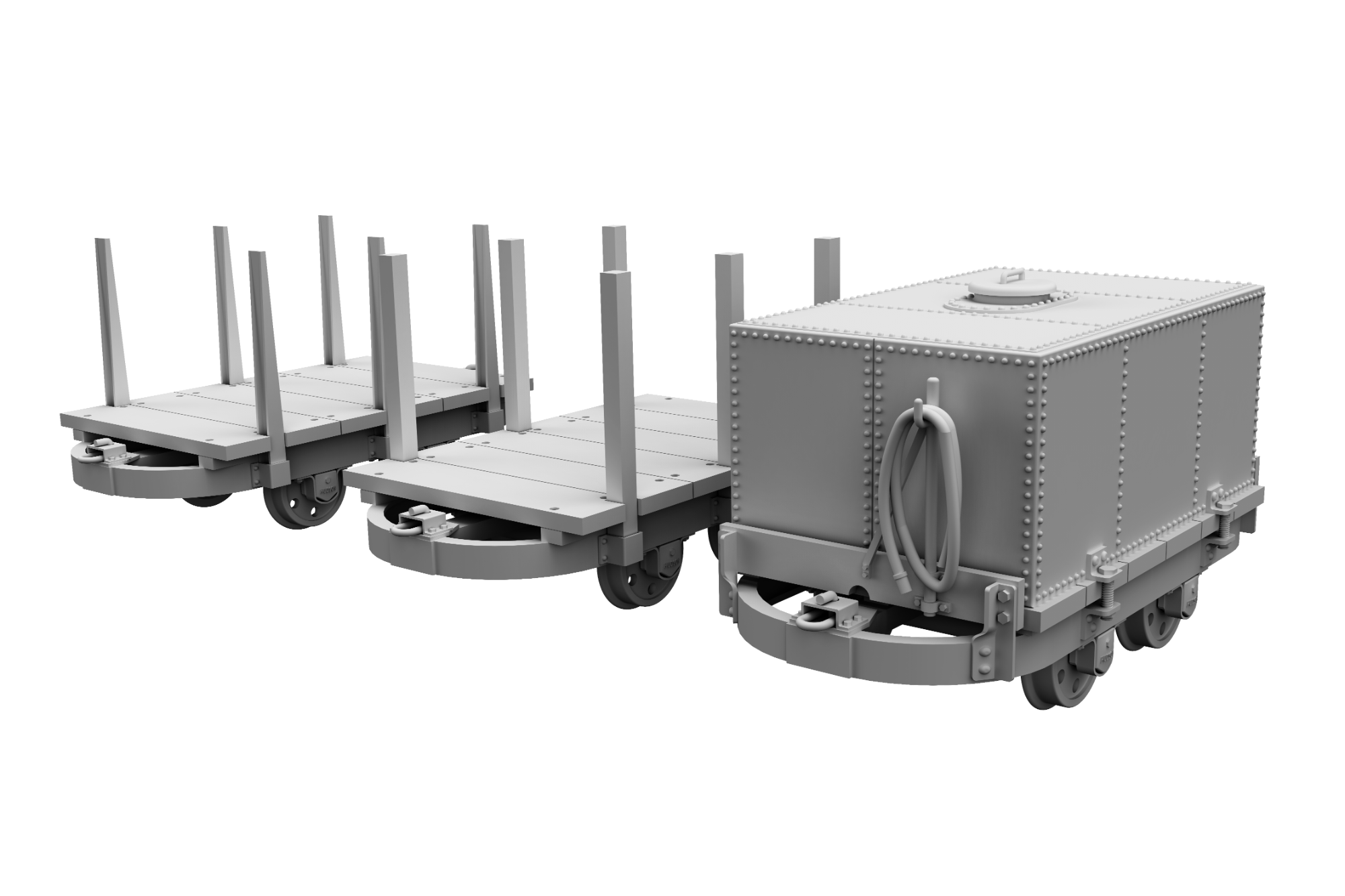

These 1:24th scale wagons are from my own kit range and designed for multi media manufacture.
Hudson Based Wagons - 1:24
This ready to run wagon was developed for Clark Railworks.

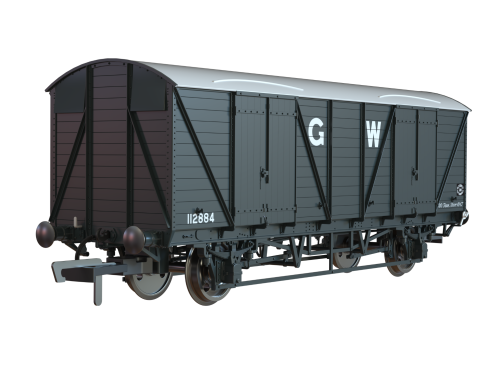

GWR Mink G - 1:76.2

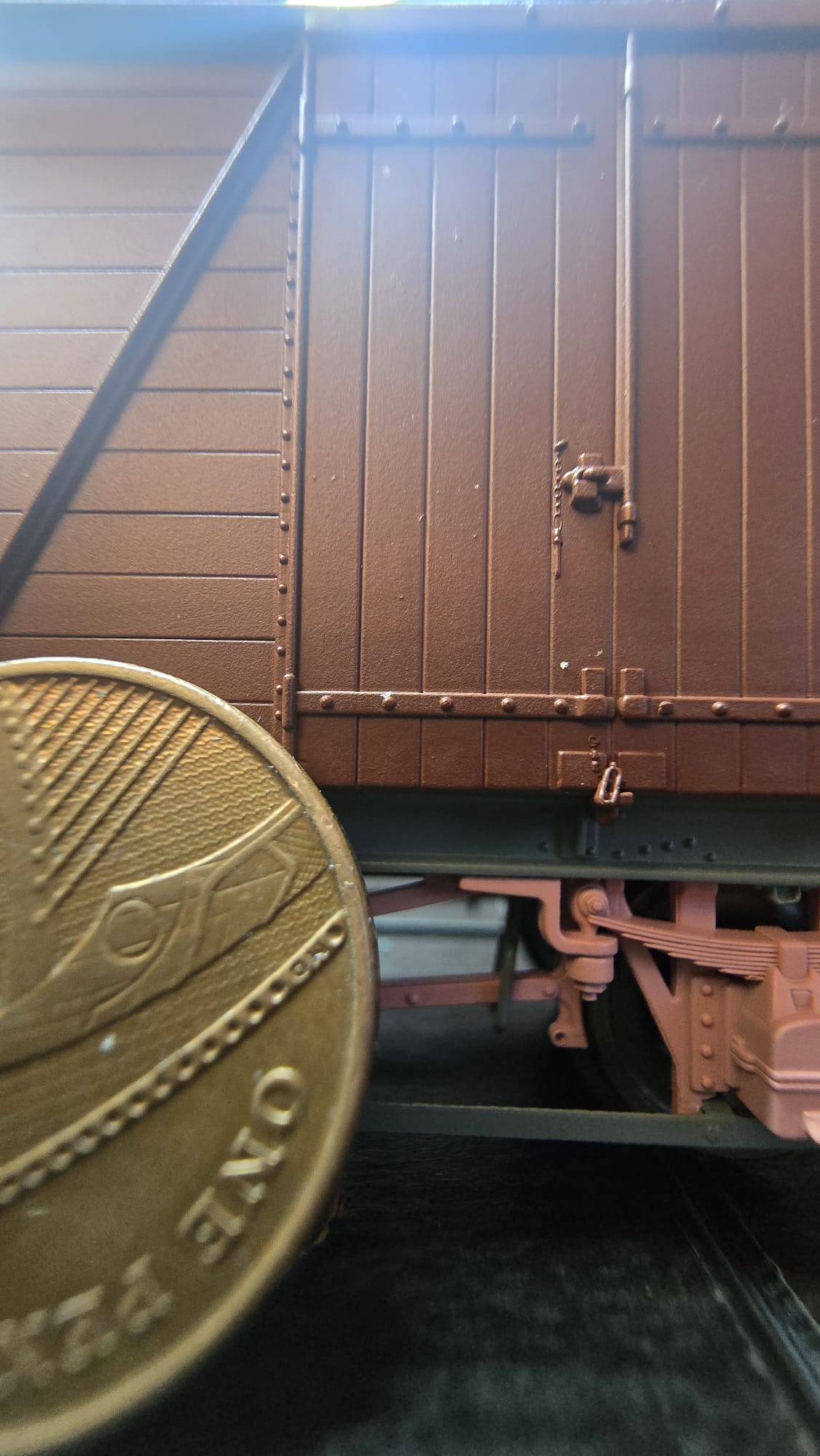

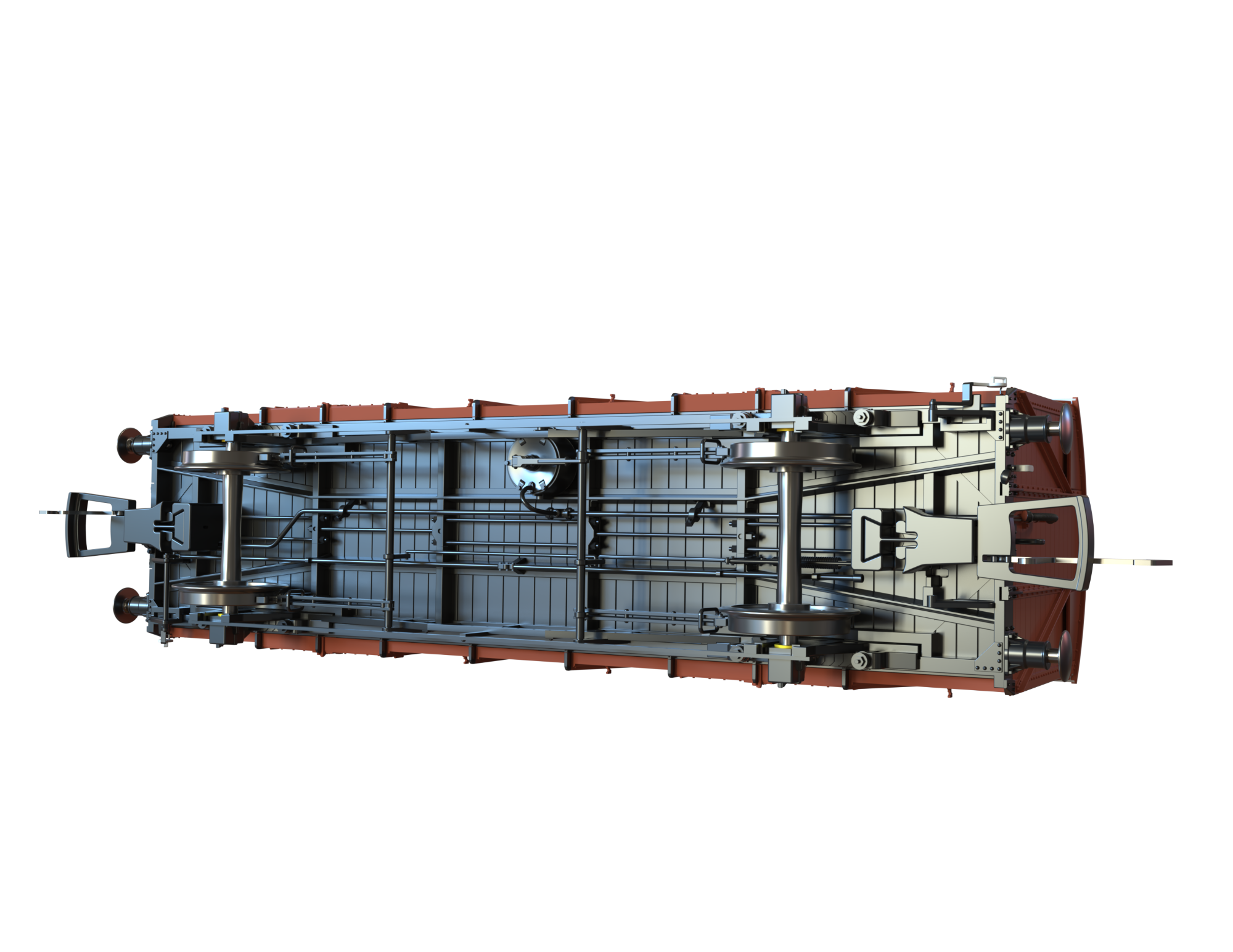

This ready to run wagon was developed for Clark Railworks. The detail was designed to be at the edge of the tooling capabilities.

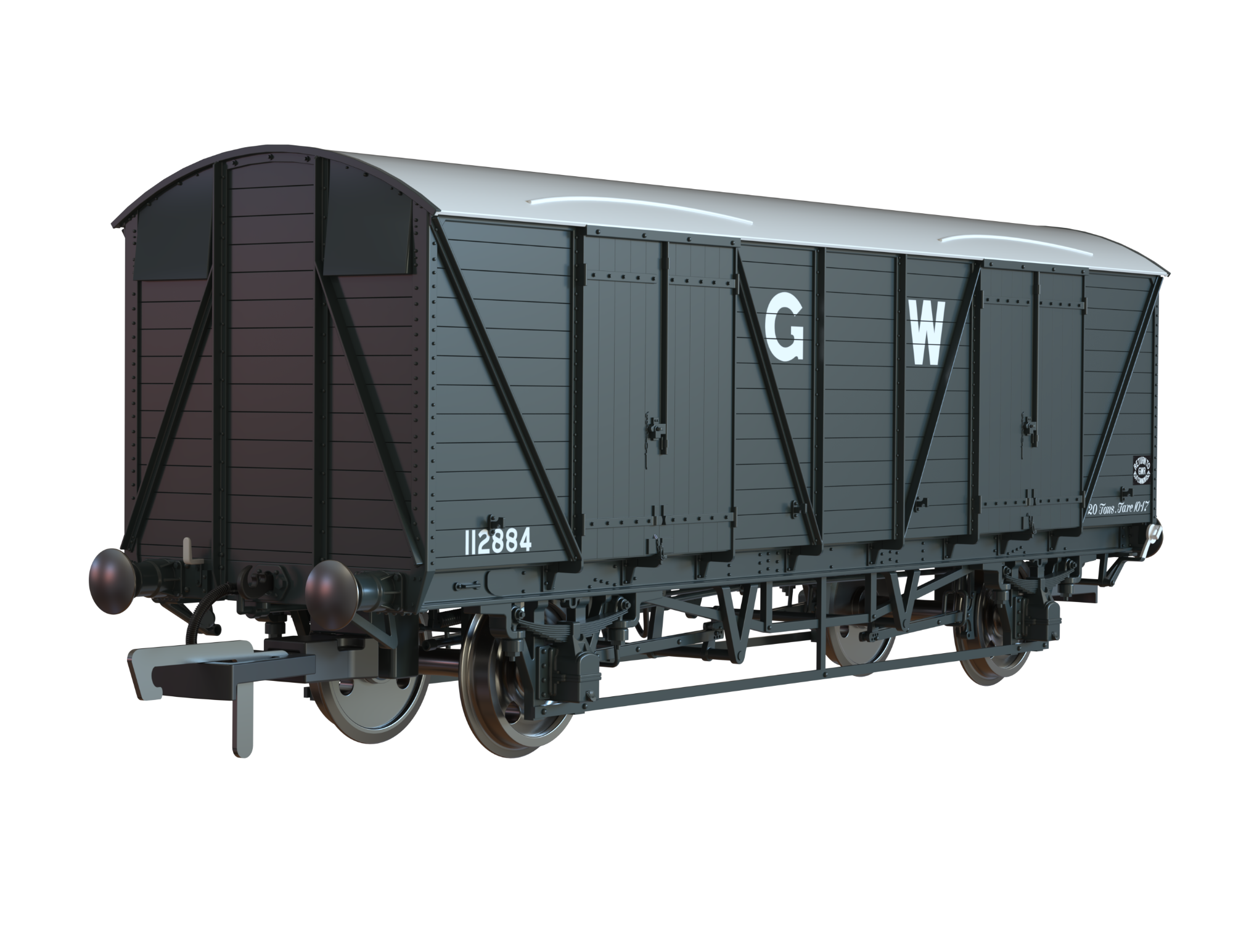

GWR Mink G - 1:76.2

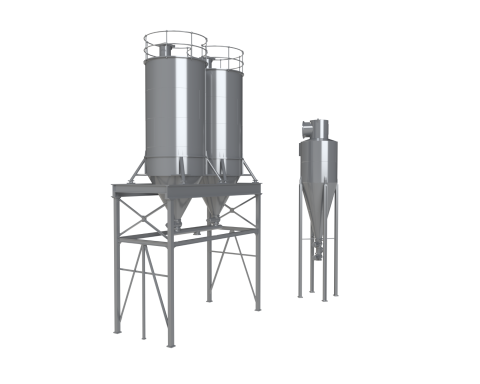

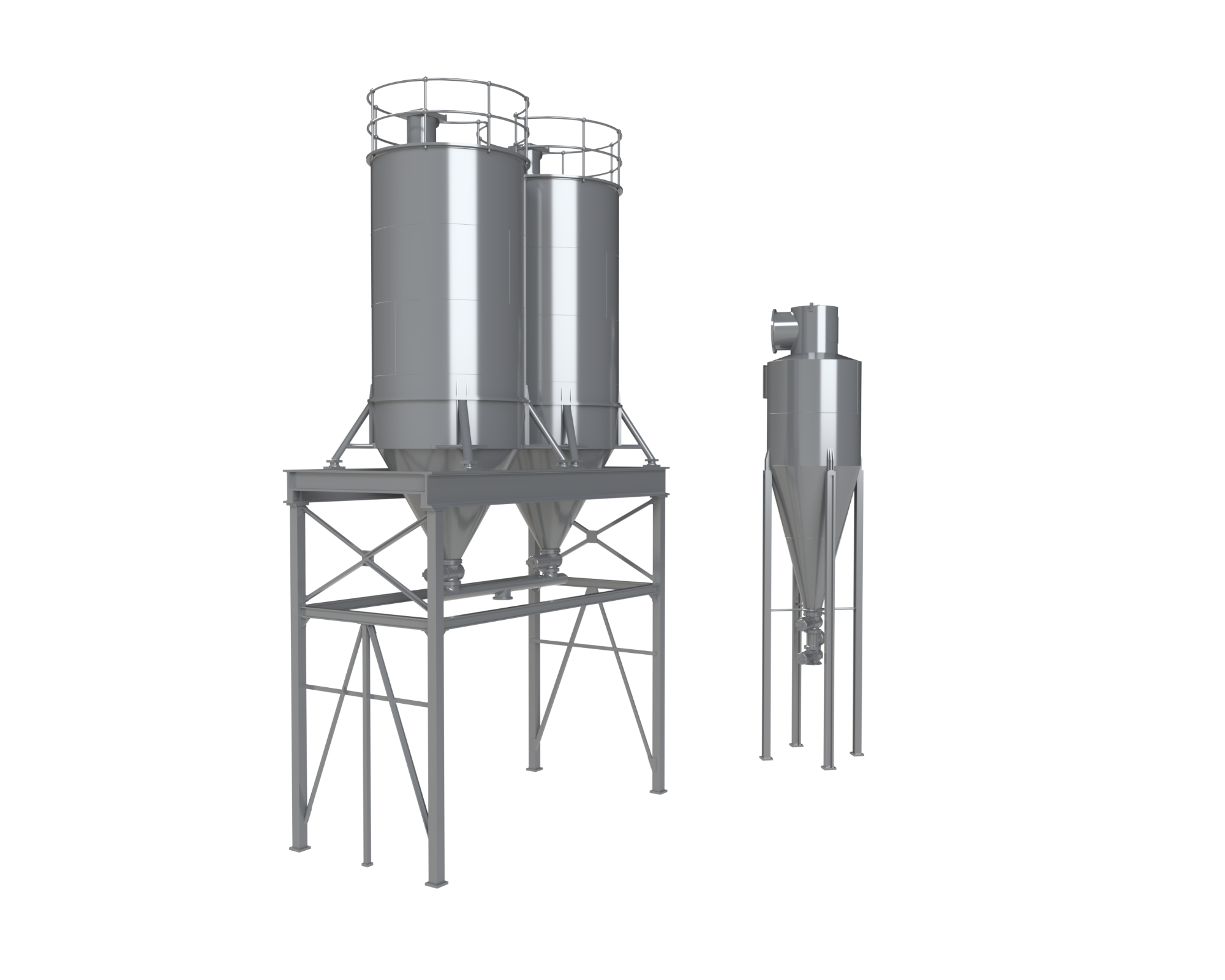

Developed for a client to be manufactured in resin and brass.
Twin Silo and Vortex - 1:43.5

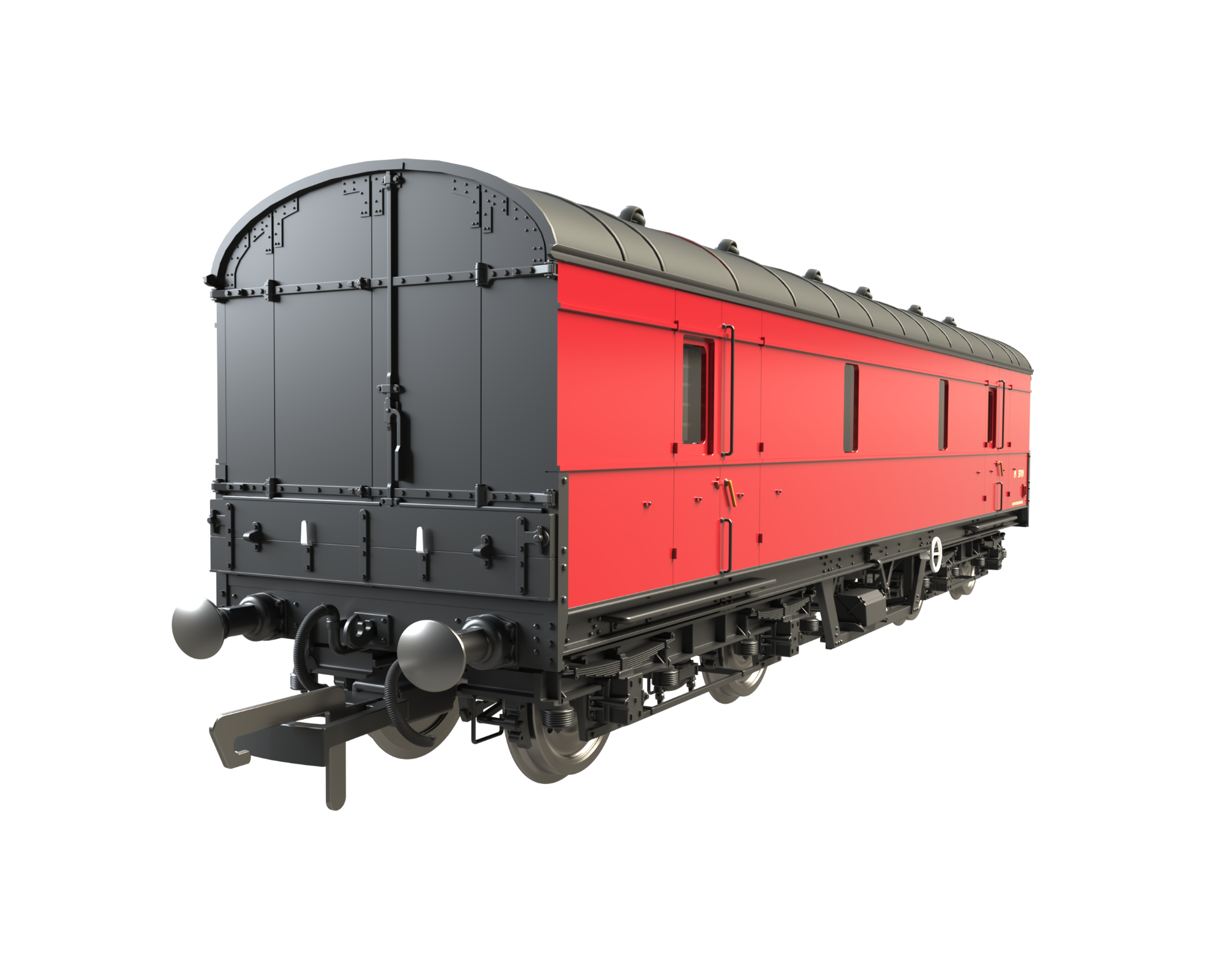

This ready to run wagon was developed for Clark Railworks. It has a full die-cast chassis and very fine detail.
LMS 42ft Guv - 1:76.2
This ready to run wagon was developed for Clark Railworks. It has a full die-cast chassis and very fine detail.
LMS 42ft Guv - 1:76.2

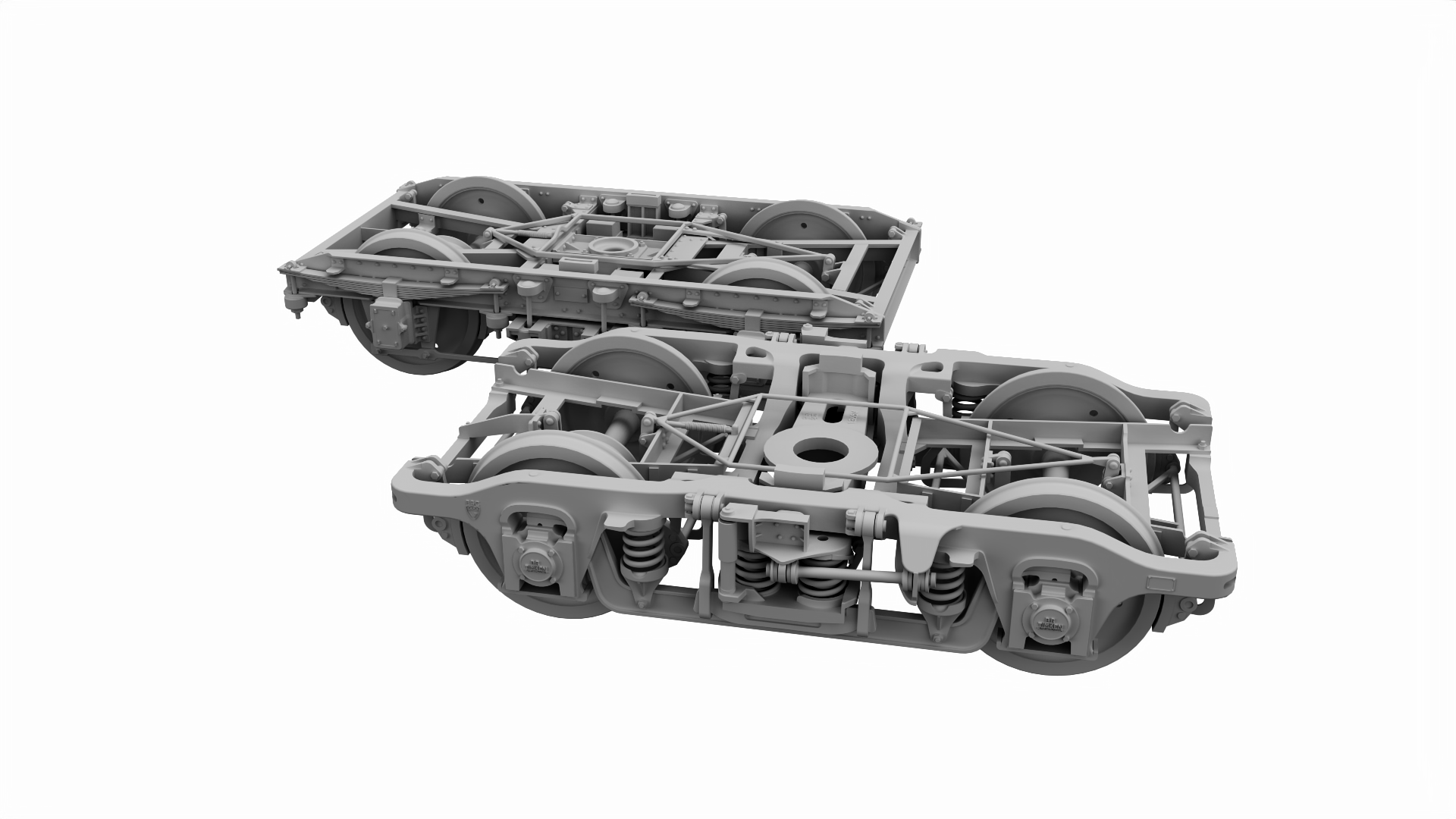

These fully detailed bogies are developed for a client for ready to run construction.
BR Mk1 & Continental Bogies - 1:43.5

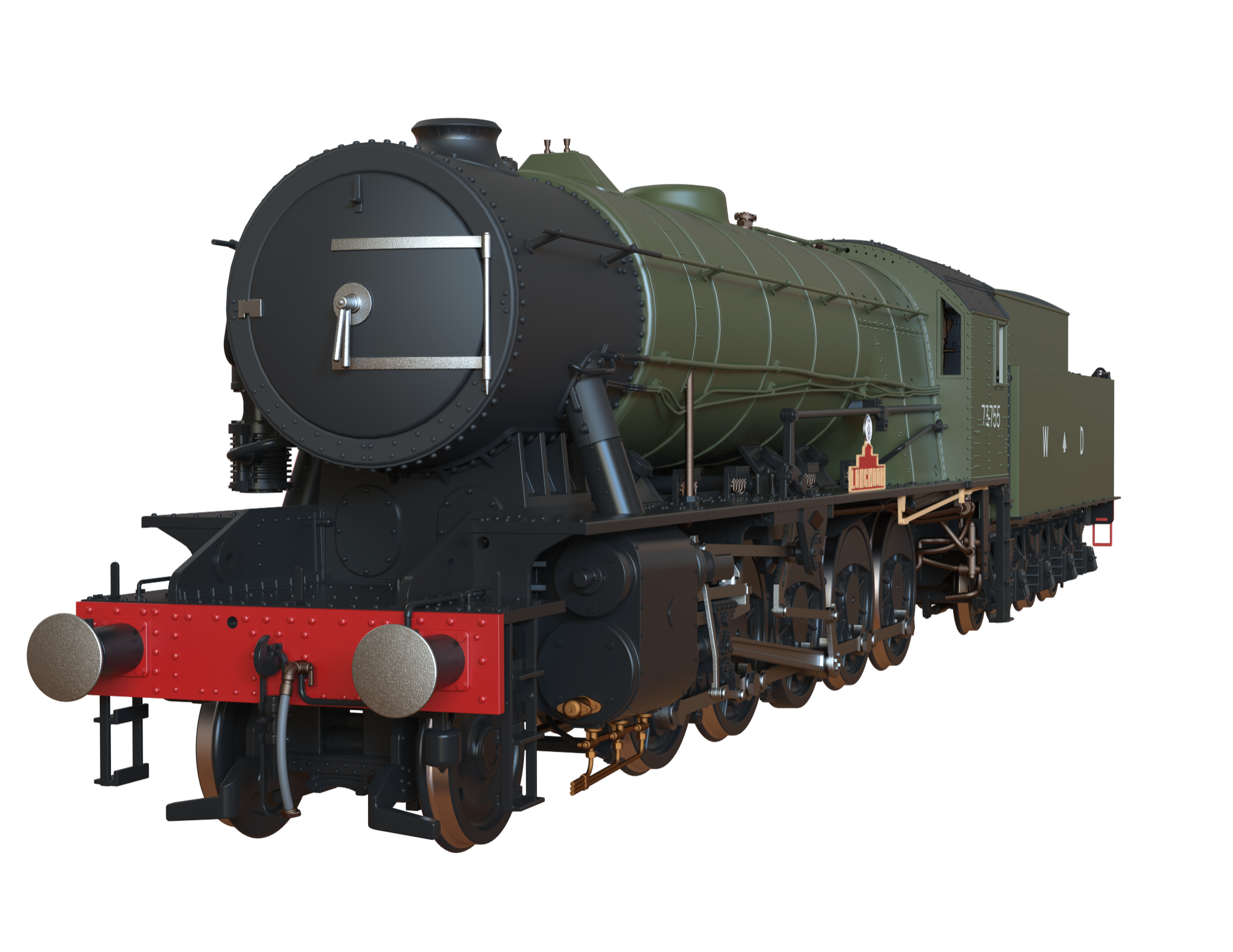

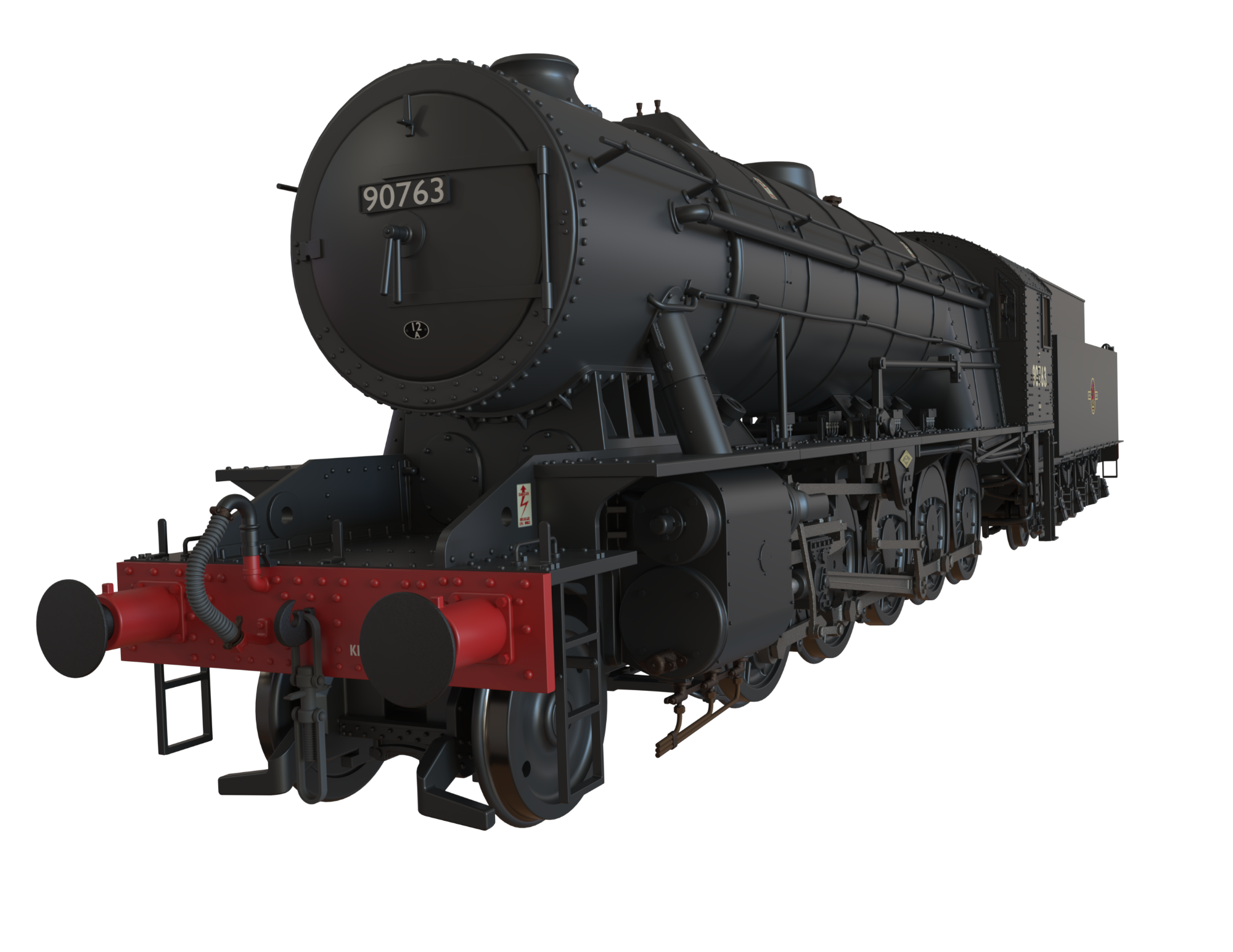

This ready to run was designed & developed for Clark Railworks. Every model in the tooling suite was radically different.
WD 2-10-0 - 1:76.2
This ready to run was designed & developed for Clark Railworks. The brief called for the OO Gauge detail to be the same as O.

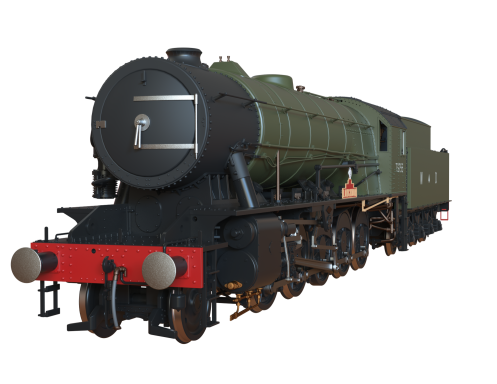

WD 2-10-0 - 1:76.2
The CAD shows an Industrial locomotive shed designed to be a multi media kit. Laser cut main frame using carefully selected hardwoods.
Industrial Shed - 1:24
